Radium Engineering Fluid Lock Catch Can Kit (PCV) Toyota GR86 / Subaru BRZ (ZN8 / ZD8)

Radium Engineering Fluid Lock Catch Can Kit (PCV) - Toyota GR86 / Subaru BRZ (ZN8 / ZD8)

The Radium Engineering Fluid Lock PCV catch can kit (SKU 20-0911-FL) is a vehicle-specific kit for the FA24-powered 2022-on Toyota GR86 and Subaru BRZ. Mounted on the right-hand side of the engine bay and running inline with the 5/8in PCV valve, it stops oil mist, unburnt fuel vapour and sludge being drawn into the intake manifold at idle, cruise and on deceleration.

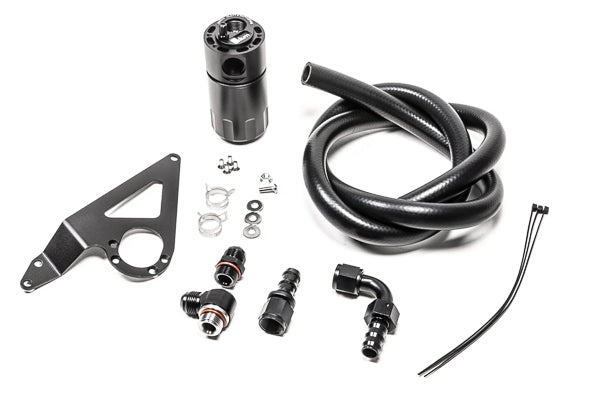

The kit includes a custom mounting bracket, pre-cut hoses and all fittings and hardware, using OEM mounting points with no cutting or drilling. The pressure-sealed, closed-loop design suits both naturally aspirated and boosted engines, and Radium's patented Fluid Lock mechanism stops the reservoir overfilling and traps collected fluid until it is emptied.

Note: Check the level with the dipstick after 3–4 weeks of driving to set an emptying interval; PCV cans typically collect more than CCV cans. Radium's matching CCV kit (20-0902-FL) mounts on the left-hand side. Installation by a professional is recommended.

Pairs Well With

• Radium Engineering Fluid Lock Catch Can Kit (CCV) - Toyota 86 / GR86 / Subaru BRZ
• Radium Engineering Catch Can O-Ring Service Kit - Universal
• Radium Engineering Catch Can Petcock Drain Kit - Universal - 4AN ORB
• Radium Engineering Fuel Filter Mount - Toyota 86 / GR86 / Subaru BRZ
• Radium Engineering Fuel Hanger - Toyota GR86 / Subaru BRZ (ZN8 / ZD8)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
