Radium Engineering Fuel Pump Hanger Nissan Silvia (S14 / S15) / Skyline (R33 / R34)

Radium Engineering Fuel Pump Hanger - Nissan Silvia (S14 / S15) / Skyline (R33 / R34)

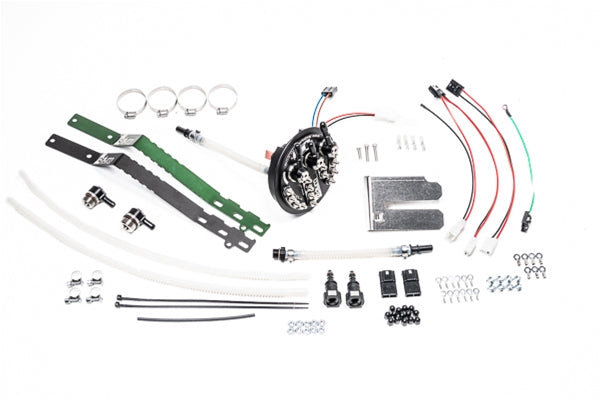

The Radium Engineering fuel pump hanger is a drop-in replacement for the complete factory in-tank fuel pump assembly in the Nissan Silvia / 200SX (S14/S15) and Skyline (R33/R34). It runs one or two aftermarket fuel pumps, brushed or brushless, suspended low in the tank like the stock unit and feeding the top hat through polyamide nylon tubing.

Video

Radium Nissan Made For: S14/S15/R33/R34 Fuel Hanger with Twin Fuel Pump Install | Otis Dixon

The factory fuel level sender, low fuel switch and (OBD-II) fuel temperature sensor are all reused. Radium has redesigned the venturi jet pump siphon so it still scavenges fuel from the passive side of the tank without restricting the return under high-flow pumps. Use the variant selector to choose the hanger to suit your pumps: 20-0630-00 for Walbro GSS342 / AEM 50-1200 (and AEM 50-1230/50-1235), or 20-0632-00 for Walbro F90000267/274/285 (plus F90000295) or Ti Automotive E5LM.

Note: Fuel pumps are sold separately and final assembly is completed at installation. Pumps marked with (+) by Radium (F90000295, E5LM, AEM 50-1230/1235) have no check valve – use Radium 20-1534 if needed. Pre-installed fittings suit the OEM fuel lines; aftermarket AN lines need low-profile swivel fittings (sold separately). The venturi jet pump consumes 15–45 LPH, so size pumps accordingly, and upgraded pump wiring is recommended. Installation by a professional is recommended.

Features

• Drop-in replacement – no cutting or modification
• Supports 1 or 2 fuel pumps including brushless
• Merged 10AN ORB (7/8-14) feed port and restriction-free 8AN ORB (3/4-16) return port
• Redesigned integrated venturi siphon system
• Fluorosilicone duckbill return valve
• Anti-rotation stainless electrical studs, hermetically sealed, with non-conductive acorn nuts
• ETFE-insulated in-tank wiring; 2x filter socks included
• Anodised aluminium with stainless steel hardware and clamps
• Petrol, E85 and methanol compatible

Pairs Well With

• Radium Engineering Fuel Hanger Plumbing Kit - Nissan Silvia (S14 / S15) / Skyline (R33 / R34)
• Radium Engineering FHST Add-On - Nissan Silvia (S14 / S15) / Skyline (R33 / R34)
• Radium Engineering Fuel Filter Kit - Nissan Silvia / Skyline (All Models)
• Radium Engineering Fuel & Brake Line Retainer Kit - Nissan Silvia / Skyline (All Models)
• Radium Engineering Top Feed Fuel Rail - Nissan Silvia (S14 / S15 SR20DET)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
