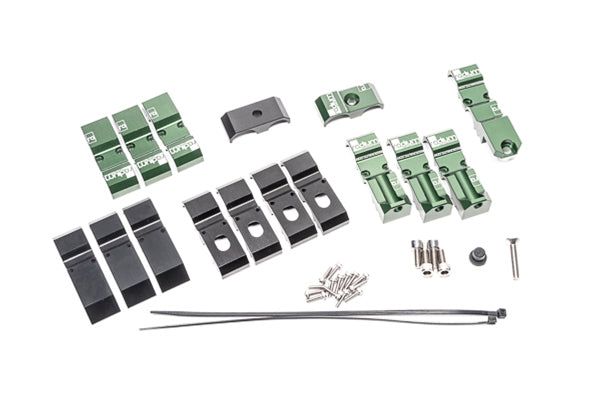

Radium Engineering Fuel & Brake Line Retainer Kit – Nissan S-Chassis & Skyline (All Models)

The Radium Engineering Fuel Brake Line Retainer Kit supports large aftermarket fuel lines under a wide range of Nissan chassis. It is designed to replace or supplement the factory plastic clips that secure the OEM fuel and brake lines, providing robust retention for high-performance fuel systems.

The billet aluminium retainers are anodised for corrosion resistance, and the included stainless steel hardware ensures long-term durability. This kit is particularly useful when upgrading to 6AN (return) and 8AN (feed) Radium Fuel/PCV hose, as it ensures clean, rattle-free routing underneath the vehicle. Each retainer is designed to clamp securely without damaging the fuel line.

Certain models may only utilise 7 of the 8 provided retainers. Installation uses existing mounting locations on the chassis, requiring no drilling or permanent modification. This kit does not include fuel lines—line sizing and compatibility must be confirmed based on the line type (rubber, braided, PTFE, aluminium, etc.).

Features:

• Designed for upgraded fuel systems using larger aftermarket fuel lines

• Precision-machined 6061 aluminium clamps, black anodised for corrosion resistance

• Compatible with 6AN and 8AN Radium hose

• Utilises factory mounting holes—no cutting or drilling required

• Clean and secure line routing underneath the vehicle

• Stainless steel hardware included for durability

Notes:

1. Some vehicles may use only 7 of the 8 included retainers

2. Kit does not include fuel lines

3. Line fitment will depend on the outer diameter of the specific fuel hose being used

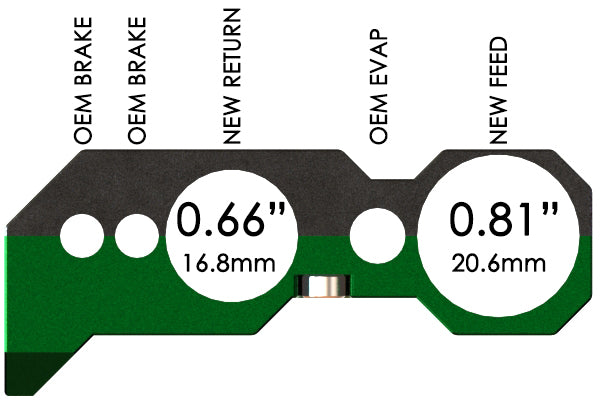

4. Refer to the technical drawing for dimension and clearance information

Compatibility:

• Nissan S13 Silvia (All models/trims/RHD/LHD)

• Nissan S13 180SX (All models/trims/RHD/LHD)

• Nissan S13 200SX (All models/trims/RHD/LHD)

• Nissan S13 240SX (All models/trims/RHD/LHD)

• Nissan S14 Silvia (All models/trims/RHD/LHD)

• Nissan S14 200SX (All models/trims/RHD/LHD)

• Nissan S14 240SX (All models/trims/RHD/LHD)

• Nissan S15 Silvia (All models/trims/RHD/LHD)

• Nissan S15 200SX (All models/trims/RHD/LHD)

• Nissan R32 Skyline (All models/trims/RHD/LHD)

• Nissan R33 Skyline (All models/trims/RHD/LHD)

• Nissan R34 Skyline (All models/trims/RHD/LHD)
