The Radium Engineering Fuel Pump Hanger is a direct replacement for the stock fuel pump module in early Nissan vehicles listed above. This hanger can be configured with 1, 2, or 3 aftermarket fuel pumps to meet the fuel demands of high-performance engines. No modifications or cutting of the vehicle’s sheet metal or fuel tank is required for installation.
The fuel pumps are placed in the factory collector bowl, and fuel is drawn through the mesh filter at the bottom of the assembly. The tank’s internal design features three independent filtration chambers, ensuring fuel cannot pass between them. If fewer than three pumps are installed, the empty port does not need to be blocked off.
The kit retains the functionality of the factory Nissan fuel level float and low fuel switch, providing accurate fuel readings. The pump outlets merge into a single 8AN female port on the top plate. The integrated check valves allow for fuel pump staging. Additionally, the return port uses an 8AN ORB female port on the top plate for efficient fuel return.
This kit includes adapter fittings for easy connection to the factory fuel lines and for aftermarket -AN style hoses. The fitting ports are machined low enough to clear the unibody sheet metal for a smooth installation.
Fuel Pump Configuration:
The fuel hanger supports various combinations of fuel pumps, based on engine power output and fuel type (gasoline, E85, etc.). The following pumps are compatible:
-
Walbro F90000267
-
Walbro F90000274
-
Walbro F90000285
-
Walbro GSS342 255lph
-
AEM 50-1200
The kit includes enough parts to run 1, 2, or 3 fuel pumps, but the user must supply their own compatible fuel pumps. Some assembly is required, and the following part numbers can be used for different pump configurations:
-
P/N: 20-0732-00 (for Walbro F9000267, Walbro F90000274, or Walbro F90000285 pumps)
-
P/N: 20-0730-00 (for AEM 50-1000, AEM 50-1200, Walbro GSS342, or other compatible pumps)
Electrical:
The custom-designed anti-rotation stainless steel electrical studs can handle high current demands, surpassing the capabilities of compact multi-pin bulkhead connectors. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminium acorn nuts prevent accidental short circuits, and the in-tank wiring is insulated with chemically resistant ETFE for durability.
Electrical hardware is provided for the fuel pump(s) and sensors, ensuring a reliable connection. The OEM wiring can be reused for a single Walbro GSS342 (255LPH) fuel pump installation, but it is recommended to upgrade the OEM wiring to ensure the pumps receive full power and operate at their full potential. Universal wiring kits for aftermarket pumps are available separately.
Features:
-
Drop-in installation with no modifications required
-
Anodized aluminium construction for durability and corrosion resistance
-
Merged 8AN ORB female pump-out port for fuel delivery
-
Barbs and 6AN/8AN fittings included
-
8AN ORB female return port for fuel return
-
Supports 1-3 aftermarket pumps
-
Compatible with various pumps including Walbro and AEM
-
High current electrical hardware for reliable power delivery
-
Stainless steel hardware and clamps included
-
Compatible with gasoline, methanol, and E85
-
New anti-rotation electrical terminals for secure connections
Compatibility:
-
Nissan S13 Silvia (All models/trims/RHD/LHD)
-
Nissan S13 180SX (All models/trims/RHD/LHD)
-
Nissan S13 200SX (All models/trims/RHD/LHD)
-
Nissan S13 240SX (All models/trims/RHD/LHD)
-
Nissan R32 Skyline (All RHD/LHD, excludes GT-R)

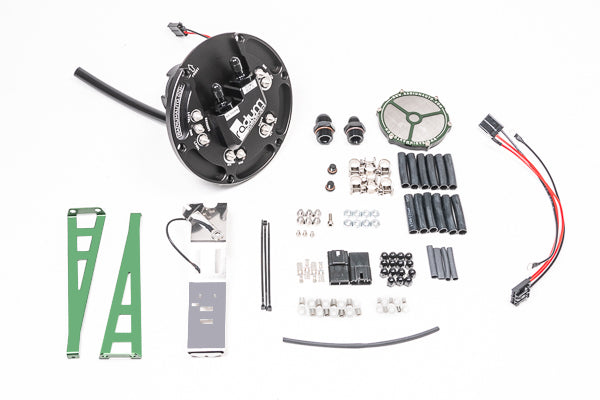

Contents
Fuel pump hanger assembly
Adapter fittings for -AN hoses
Stainless steel hardware and clamps
Billet aluminium mounting hardware
Electrical hardware for pumps and sensors
No instructions available for this product.
