Radium Engineering Fuel Hanger Plumbing Kit for 2022+ FL5 Honda Civic Type R
Radium Engineering builds fuel system hardware to motorsport grade tolerances, and this plumbing kit is the piece that ties everything together on the Honda Civic Type R FL5. It's designed to work alongside the Radium fuel pump hanger, giving you a complete path from tank to engine bay without any guesswork.
This listing covers the 2022+ Honda Civic Type R (FL5), and is available with a choice of filtration media — a 10-micron stainless steel element (SKU 20-1095-03) or a 6-micron microglass element (SKU 20-1095-05). Select your preferred filter option from the variant selector on this listing.
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your vehicle's year and configuration before ordering.
Pairs Well With
- Radium Engineering Fuel Pump Hanger - Honda Civic Type R (FL5)
- Radium Engineering Fuel Filter Mount - Honda Civic (FC/FK7) / Civic Type R (FK8/FL5)
- Radium Engineering Port Injection Kit - Honda Civic Type R (FK8 / FL5)
- Radium Engineering Replacement Fuel Filter Element - Universal
- Radium Engineering Fuel Filter Body O-Ring Pair - Universal
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Honda | Civic Type R | FL5 | - |
Product
- Alternate Part Number
- 20-1095-05
Details
- Vehicle Fitment
- 2022+ Honda Civic Type R (FL5)
- Filter (20-1095-03)
- 10-micron stainless steel
- Filter (20-1095-05)
- 6-micron microglass
- Fuel Feed Line
- 8AN PTFE
- Fuel Return Line
- 6AN PTFE with SAE quick connect
- Fuel Pressure Regulator
- Dual fuel pressure regulator (DFPR), two independent outputs
- Fuel Pressure Gauge Range
- 0-100 psi (0-689 kPa)
- Fuel Filter Adapter Fittings
- 8AN
- Port-Injection Outlet Fitting
- 8AN ORB (plug supplied)
- Line Retainers
- 3x billet aluminium, fuel and brake line
- Mounting Hardware
- Stainless steel
- Vacuum Tubing
- 4 mm (5/32 in)
- Construction
- CNC-machined billet aluminium components

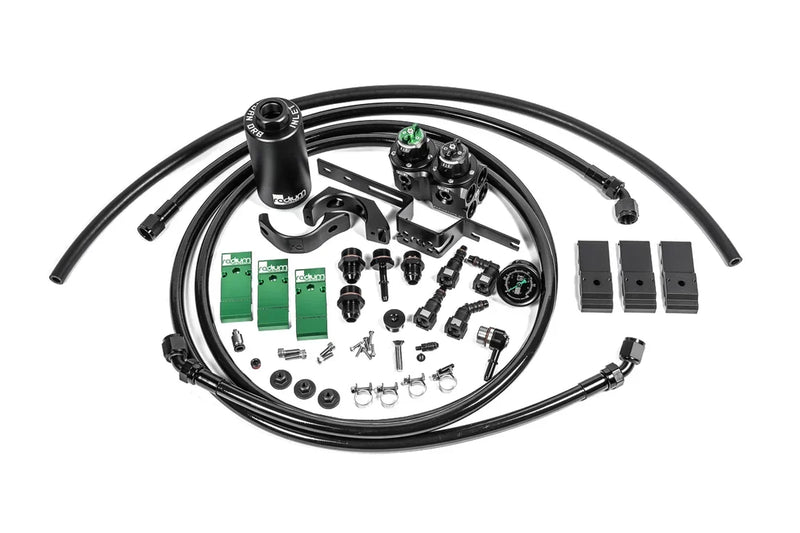

Contents
- High-flow fuel filter (element per variant)
- Dual fuel pressure regulator with 0-100 psi gauge
- 8AN PTFE fuel feed hoses
- 6AN PTFE fuel return line with SAE quick-connect adapters
- 8AN fuel filter adapter fittings
- Billet aluminium fuel and brake line retainers (3)
- 5/32" vacuum tubing
- Stainless steel hardware
- Adapter fittings
