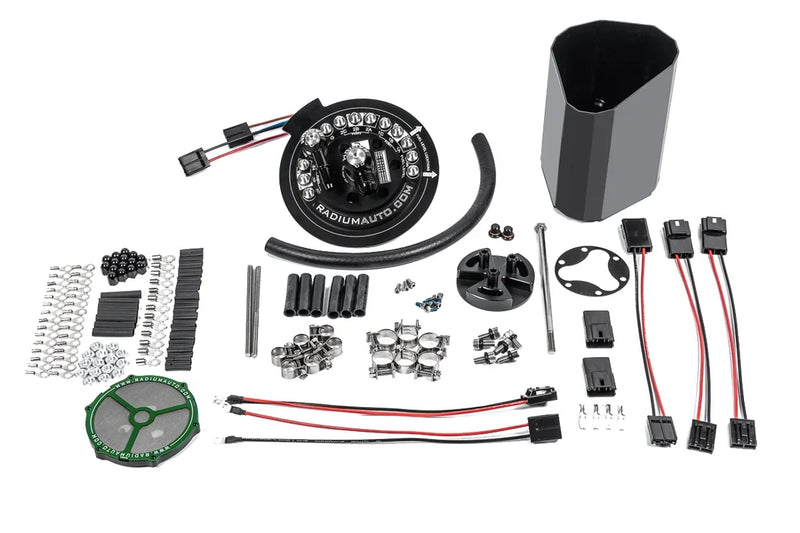

Radium Engineering Fuel Pump Hanger - Honda Civic Type R (FL5)
Radium Engineering builds fuel system hardware to motorsport grade tolerances, and this fuel pump hanger (SKU 20-1090) is designed as a serious foundation for upgrading the low pressure fuel system on the Honda Civic Type R. It supports one, two or three aftermarket pumps while reusing the OEM fuel level sensor, keeping the install clean and factory looking.
This listing covers the Honda Civic Type R (FL5) 2022 onward. The hanger is available with different pump compatibility options, including configurations for AEM and DeatschWerks pumps or Walbro, Fuelab and Protec pumps, so check the variant selector on this listing to choose the correct fitment for your fuel pump.
Note: An external fuel pressure regulator and low micron fuel filter are required for a complete install. These are included in Radium's fuel hanger plumbing kits, sold separately.
Specifications
- Fuel pump capacity: 1 to 3 aftermarket pumps
- Fuel level sensor: reuses OEM sensor
- Pump outlet: 10AN ORB female, 7/8-14 thread, supplied with low profile 8AN male fitting
- Fuel return inlet: 6AN ORB female, 9/16-18 thread
- Collector fill valves: 3 one way valves, 355 LPH each
- Materials: anodised aluminium and stainless steel
- Fuel compatibility: petrol, methanol and E85
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your fuel pump selection and configuration are confirmed before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Honda | Civic Type R | FL5 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Vehicle Fitment | 2022+ Honda Civic Type R (FL5) |
| Fuel Pump Capacity | 1 to 3 aftermarket fuel pumps |
| Fuel Level Sensor | Reuses OEM sensor |
| Pump Outlet Port | 10AN ORB female, 7/8-14 threads |
| Supplied Outlet Fitting | Low-profile 8AN male fitting |
| Fuel Return Inlet Port | 6AN ORB female, 9/16-18 threads |
| Collector Fill Valves | 3 one-way valves, 355 LPH flow rate each |
| Collector Box Construction | One-piece anodised aluminium |
| Materials | Anodised aluminium and stainless steel |
| Fuel Compatibility | Petrol, methanol and E85 |
| Electrical Studs | Stainless steel, anti-rotation design, hermetically sealed |
| In-Tank Wiring Insulation | ETFE (chemically resistant) |
| 20-1090 Compatible Pumps | AEM 50-1220, DeatschWerks DW440 (brushless) |
| 20-1092 Compatible Pumps | Ti Automotive Walbro F90000267, F90000274, F90000285; Fuelab 49614; Protec 11928 (brushless) |
| 20-1095-03 Plumbing Kit Filter | 10-micron stainless steel filter element |
| 20-1095-05 Plumbing Kit Filter | 6-micron microglass filter element |
| Dual Fuel Pressure Regulator Gauge Range | 0-689 kPa (0-100 psi) |
| Return Line Hose Size | 6AN EFI hose with SAE quick-connect adapters |
| Fuel Hanger Outlet Line (Plumbing Kit) | 8AN PTFE fuel line |
| Rear Return Line (Plumbing Kit) | 6AN PTFE line with quick-connect fitting |
No instructions available for this product.
