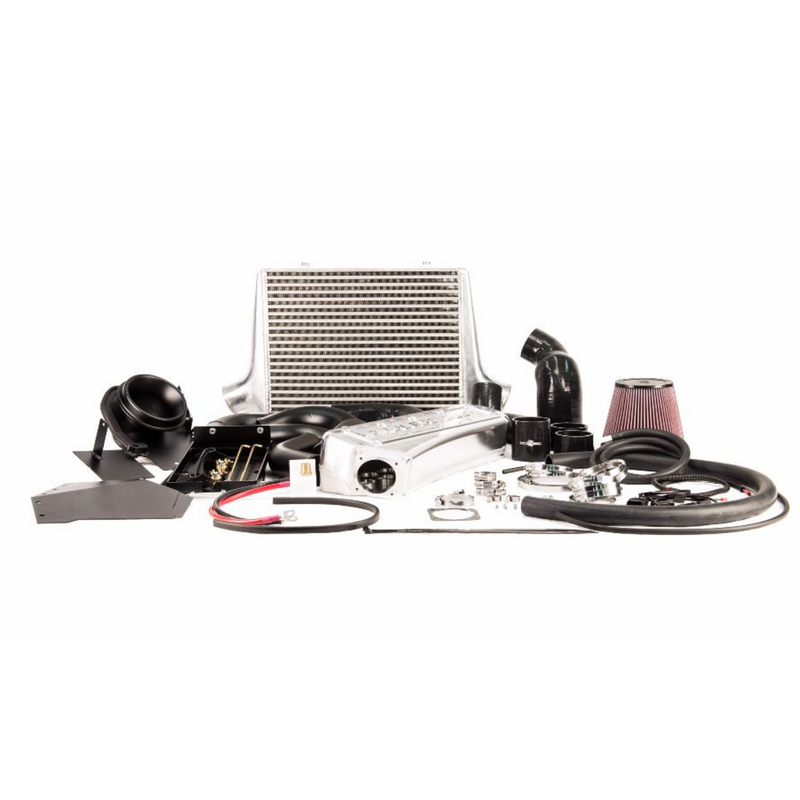

Process West Stage 3.4 Performance Package - Ford Falcon (BA/BF)
Process West builds serious front mount intercooler and induction gear for Australia's favourite turbo six, and the Stage 3.4 Performance Package brings their biggest core, billet plenum, race air box and battery relocation kit together in one upgrade for the Ford Falcon.
This listing covers the Ford Falcon BA and BF. The package is available in Black or Silver finish (SKU PWBAPP34 / PWBAPP34B) — select your preferred colour from the variant options on this listing.
Note: the 4 inch race air box and plenum are designed for high output builds and may require supporting mods (turbo, tune) to realise full benefit.
Key Features
- 500 x 425 x 100mm bar and plate intercooler core
- CNC machined 5083 aluminium plenum with bell mouth runners
- Plug in throttle body extension loom, no wire cutting
- Battery relocation kit with laser cut tray and bracket
- 4 inch race air box with 6 inch K&N filter, suits 500rwkW+
Vehicle compatibility, part numbers and fitment notes are provided in the tabs above. Please confirm your model year and configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | Falcon | BA/BF | - |
Technical Specifications
| Spec | Value |
|---|---|
| Intercooler Core Type | Bar & plate |
| Intercooler Core Dimensions | 500 x 425 x 100 mm |
| Intercooler Finish Options | Black powdercoat or silver |
| Plenum Material | 5083 aluminium billet, CNC machined |
| Plenum Runner Design | Blended bell-mouth entry at each runner |
| Air Box Filter Diameter | 152 mm (6 in) internal diameter, K&N filter |
| Air Box Bell-Mouth Reduction | 152 mm to 102 mm (6 in to 4 in) |
| Air Box Outlet Diameter | 102 mm (4 in) OD |
| Air Box Inlet Hose | Wire reinforced moulded silicone hose, 152 mm to 102 mm (6 in to 4 in) |
| Optional Turbo Inlet Hose | 102 mm to 102 mm (4 in to 4 in) silicone hose, part no. PWBACAI03-hose |
| Compatible Turbo Cover | 0.7 A/R, 4 in inlet |
| Rated Flow Capacity | 500 rwkW+ |
| Battery Terminal Distribution Block Material | High density P7000 plastic |
No instructions available for this product.
