Process West Stage 2.5 Performance Package - Ford Falcon (BA/BF)
Process West has been building serious induction and cooling hardware for Ford's turbo six platform for years, and the Stage 2.5 Performance Package brings together their proven intercooler, plenum, air box and battery relocation gear into one serious upgrade path for the Ford Falcon. It's aimed at owners chasing big, reliable power without piecing together components from multiple suppliers.
This listing covers the Ford Falcon BA and Ford Falcon BF, and is available in Silver (SKU PWBAPP25) or Black (SKU PWBAPP25B) intercooler core finish via the variant selector on this page.

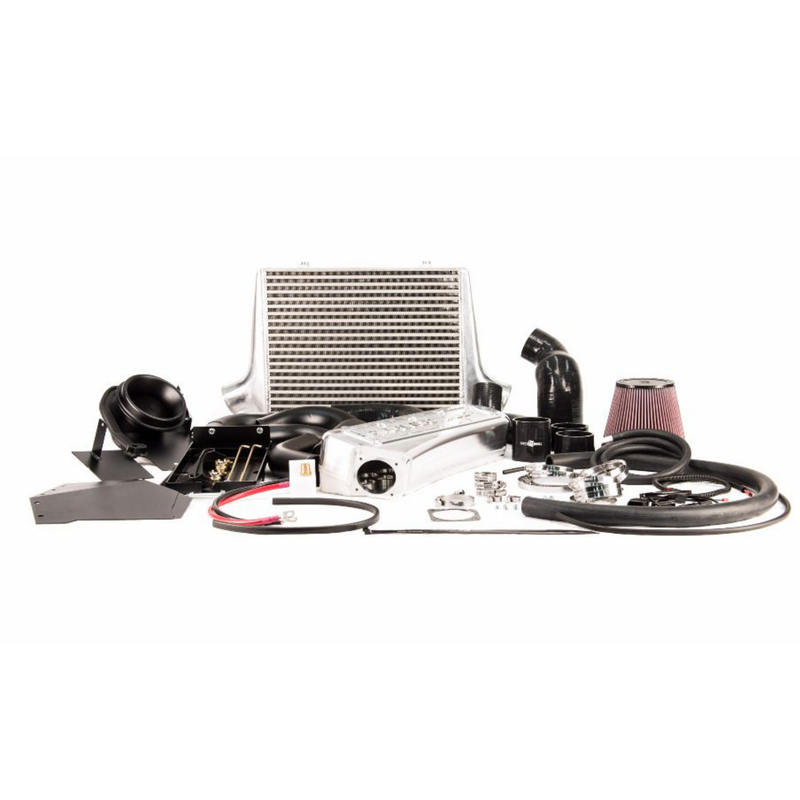

Kit Contents
- Stage 2 front mount intercooler core, 500 x 360 x 80mm bar and plate design with polished aluminium end tanks
- Billet 5083 aluminium plenum with bell mouthed runners and plug in throttle body extension loom
- Battery relocation kit with laser cut tray, bracket and high density terminal block
- 4 inch race air box with 6 inch K&N filter and internally reinforced silicone hose, suited to 500rwkW+ builds
Vehicle compatibility, part numbers and fitment notes are provided in the tabs above. Please confirm your Falcon's build configuration before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Ford | Falcon | - |
Technical Specifications
| Spec | Value |
|---|---|
| Intercooler Core Type | Bar & plate core |
| Intercooler Core Dimensions | 500mm x 360mm x 80mm |
| Intercooler End Tanks | Hi-flow polished aluminium |
| Intercooler Finish Options | Black powdercoated or silver |
| Plenum Material | 5083 aluminium billet, CNC machined |
| Plenum Runner Design | Blended bell-mouth runner entries |
| Plenum Wiring | Plug-in throttle body extension wiring loom included |
| Battery Relocation Tray | Laser cut steel tray and bracket |
| Battery Terminal Block | High density P7000 plastic distribution block |
| Air Box Outlet Diameter | 101.6mm (4 in) |
| Air Filter Internal Diameter | 152.4mm (6 in) K&N filter |
| Air Box Bell Mouth | 152.4mm to 101.6mm (6 in to 4 in) transition |
| Intake Hose Construction | Internally wire reinforced moulded silicone hose |
| Rated Flow Capacity | 500rwkW+ |
| Optional Hose (sold separately) | 101.6mm to 101.6mm (4 in to 4 in) silicone hose, PWBACAI03-hose |
No instructions available for this product.
