Process West Stage 2.3 Performance Package Ford Falcon (BA/BF)

Process West Stage 2.3 Performance Package - Ford Falcon (BA/BF)

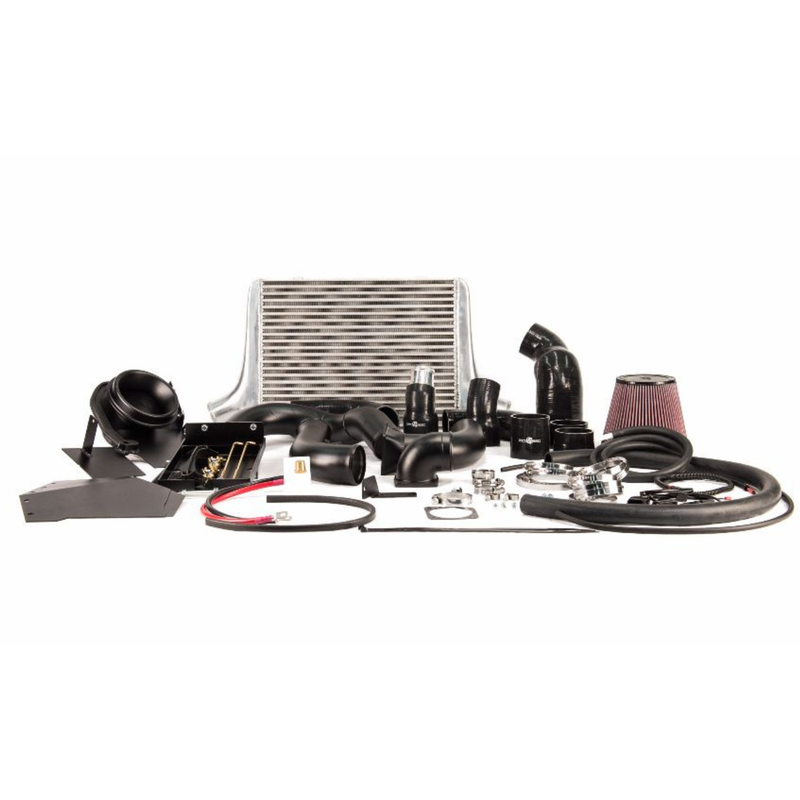

The Process West Stage 2.3 Performance Package builds a high-flow induction system for the BA/BF Falcon from four parts: the Stage 2 front mount intercooler, the throttle body relocation kit, the battery relocation kit and the 4-inch race air box. The battery moves behind the driver's side foglight area to make room for the air box, which feeds a 6-inch K&N filter through a 6-to-4-inch bell mouth and is designed for 500rwkW+. The relocated throttle body allows true 3-inch intercooler piping with no bonnet rubbing.

Choose a silver intercooler core (PWBAPP23) or black powdercoat core (PWBAPP23B).

Note: Installation by a professional is recommended.

Features

• Stage 2 intercooler with a 500 x 360 x 80mm bar and plate core
• Throttle body relocation for true 3-inch piping without bonnet rubbing
• Battery relocation with no cable cutting, keeping jump-start access
• 4-inch race air box with a 6-inch internal diameter K&N filter
• Wire reinforced moulded silicone hose to the turbo
• Air box outlet suits most high mount turbo inlets
• Black powdercoat or silver intercooler core

Pairs Well With

• Process West 4" Silicone Inlet Pipe - Ford Falcon (BA/BF) - PW Airbox & 4" Turbo Inlet
• Process West Dual Entry Billet Fuel Rail - Ford Falcon (BA/BF)
• Process West Stage 2 Fuel System Fitting Kit - Ford Falcon (BA/BF)
• Injector Dynamics XDS Fuel Injectors - Ford Falcon XR6 Turbo (BA/BF) / Volkswagen VR6 12v - 60mm Set of 6
• Turbosmart Kompact Dual Port Blow Off Valve 25mm - Ford Falcon XR6 Turbo (BA/BF/FG) / VW Golf GTI (Mk4) / Audi S3 (8L)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
