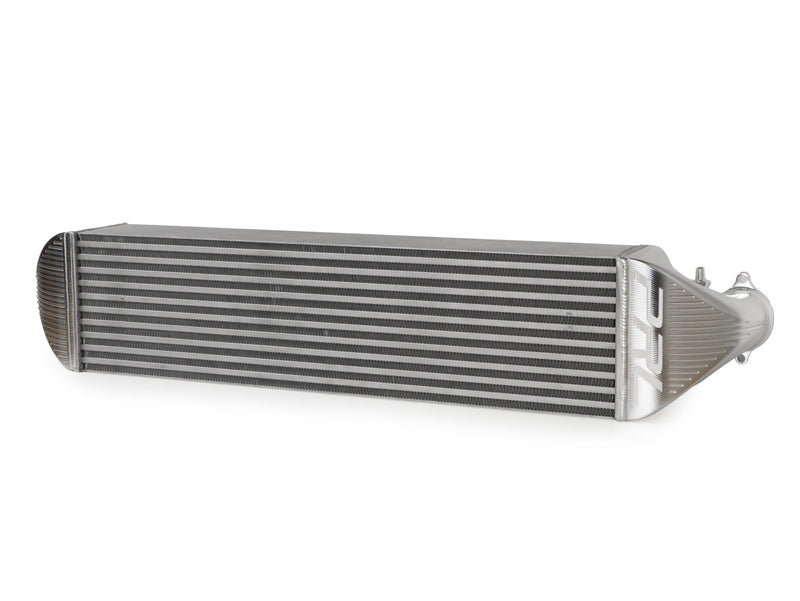

PRL Motorsports Tube and Fin Intercooler Upgrade - Honda Civic Type R (FL5)
PRL Motorsports builds its cooling hardware around real track data, and this Tube and Fin Intercooler is designed specifically to shed heat faster and shave weight off the front end of the Honda Civic Type R (FL5). It's built for drivers chasing consistent thermal performance across long track sessions, not just a one-off dyno pull.
This listing covers the 2023-2025 Honda Civic Type R (FL5) and is available in Billet Aluminium or Black thermal dispersant coated finishes, selectable via the variant options on this listing page. The black coating adds extra corrosion resistance and helps spread heat more evenly across the core surface during sustained driving.
Specifications
- Core dimensions: 184 mm x 108 mm x 716 mm (7.25 in x 4.25 in x 28.2 in)
- Total assembly weight: 6.5 kg (35% lighter than PRL's bar-and-plate unit at 10.1 kg)
- CNC-machined 6061 aluminium billet end tanks, final tank weight 0.48 kg (down from 8.8 kg raw billet)
- Thin-wall tube and fin core for faster heat transfer at high airflow speeds
- OEM-style O-ring sealing grooves, removes factory assembly-tab groove prone to blowing out at higher boost
- Thinner mounting flanges secured with included M8 socket-head bolts
Kit Contents
- PRL Tube and Fin Intercooler assembly
- 2x custom EPDM O-rings
- Rubber edge guard for bumper-to-intercooler sealing
- 4x M8 socket-head cap screws
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your FL5's model year and configuration before ordering.
Not sure if this intercooler suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Acura | Integra Type S | DE5 | K20C1 |
| Honda | Civic Type R | FL5 | K20C1 |
Technical Specifications
| Spec | Value |
|---|---|
| Core Dimensions | 184 mm × 108 mm × 716 mm (7.25 × 4.25 × 28.2 in) |
| Total Assembly Weight | 6.53 kg (14.4 lbs) |
| Comparable PRL Bar-and-Plate Weight | 10.07 kg (22.2 lbs) |
| End Tank Material | CNC-machined 6061 aluminium extrusion |
| Finished End Tank Weight | 0.48 kg (1.05 lbs) |
| Raw Billet End Tank Weight | 8.85 kg (19.5 lbs) |
| Mounting Hardware | M8 socket-head cap screws (4 included) |
| O-Ring Type | Custom EPDM O-rings (2 included) |
| Included Components | PRL Tube-and-Fin Intercooler Assembly; (2) Custom EPDM O-rings; Rubber edge guard; (4) M8 socket-head cap screws |
