PARAGON Rotor Rings 350 x 11mm, PCD 242, 8-Bolt

PARAGON Rotor Rings – 350 x 11mm, PCD 242, 8-Bolt

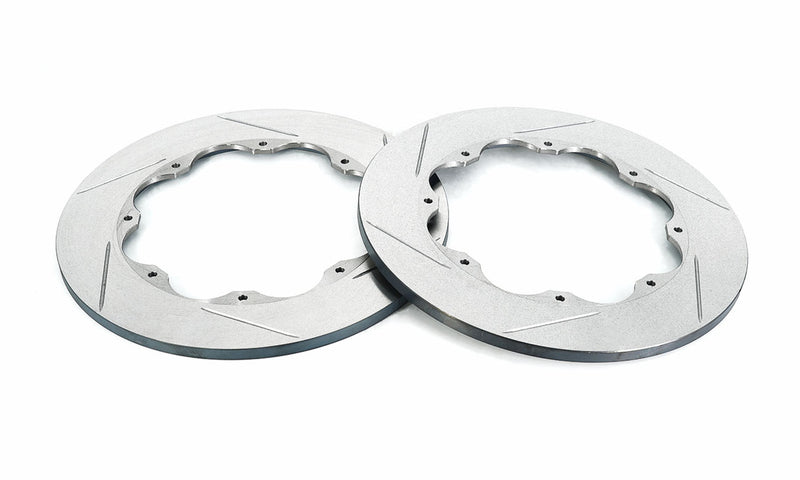

Paragon Performance replacement rotor rings for 2-piece floating brake rotors measuring 350 x 11mm on a 242mm PCD, with 8 round mountings (6.4mm). Each solid ring is cast from CM-250 high-carbon alloy iron for strong bite, high-temperature strength and good thermal capacity.

The rings are heat treated to relieve stress, then CBN machined for quick pad bedding. Lateral run-out is held within 0.03mm and balance within 2 g, which keeps judder down. The slotted face keeps the pad surface clean and helps in the wet. Sold as a left and right pair.

Note: Hat hardware is sold separately. Paragon recommends new hardware when replacing rings; its rotor assembly instructions give the torque specs. Confirm PCD (242mm), mountings (8 round holes, 6.4mm) and max pad depth (45mm) match your assembly before ordering. Installation by a professional is recommended.

Features

• 350 x 11mm ring, PCD 242mm
• 8 round mountings (6.4mm)
• Solid CM-250 ring for strong bite and thermal capacity
• CM-250 high-carbon alloy cast iron, heat treated and CBN machined
• Run-out within 0.03mm; balanced within 2 g
• Slotted face for consistent bite and wet-weather performance
• Floating 2-piece design reduces fade and judder

Kit Contents

• 1 x pair of rotor rings (left and right)
• Installation manual

Technical drawing: Paragon ring drawing (PDF)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
