PARAGON 2-Piece Rear Rotors Hyundai i30 N (PDe) / i30 N Sedan (CN7) / Veloster N (JS) / Kona N (OS) 314 x 20mm

PARAGON 2-Piece Rear Rotors – Hyundai i30 N (PDe) / i30 N Sedan (CN7) / Veloster N (JS) / Kona N (OS) – 314 x 20mm

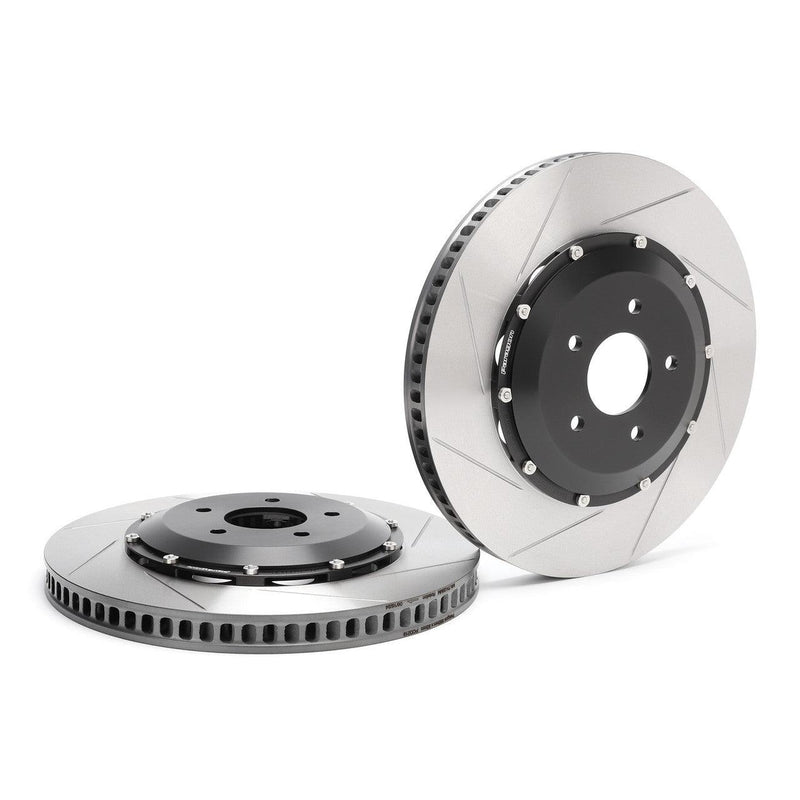

These Paragon 2-piece rear rotors are a direct bolt-on replacement for the factory rear discs on the Hyundai i30 N (PDe), i30 N Sedan (CN7), Veloster N (JS) and Kona N (OS). The 314 x 20mm slotted ring is made from CM-250 high-carbon cast iron with 48 directional vanes, running up to 30% cooler than the OE rotor, and floats on a CNC-machined 6061-T6 aluminium hat to cut unsprung weight and resist judder and fade on track. They work with the factory calipers, ABS and brake bias, and with OE or aftermarket pads of the same pad depth.

Choose your hat finish. Clear hard anodised hats don't discolour under heat and are the pick for track use. Black hardcoat anodised hats suit street and mixed use but can discolour above about 260°C.

Note: Replaces Hyundai rear rotors 58411-K9500 and 58411-S0500. Minimum ring thickness is 18mm. Installation by a professional is recommended.

Features

• Direct bolt-on, no modifications; keeps factory ABS and brake bias
• 314 x 20mm slotted ring, 48 directional vanes, up to 30% cooler than OE
• CM-250 high-carbon alloy cast iron, heat treated and CBN machined
• Lateral run-out within 0.03mm; balanced within 2 g
• Fully floating 2-piece design with D-Bobbin (short) 10-bolt mounting and anti-rattle clips
• 6061-T6 aluminium hat, Mil-spec Type III anodised (black hardcoat or clear hard anodised)
• Cross-references Brembo 09.D085.11, Centric/StopTech 121.51061 and DBA DBA3149E

Pairs Well With

• PARAGON 2-Piece Front Rotors – Hyundai i30 N (PDe) / Veloster N (JS) – 345 x 30mm
• PARAGON 2-Piece Front Rotors – Hyundai i30 N Sedan (CN7) / i30 N Hatch (PDe Facelift) – 360 x 30mm
• PARAGON 6-Piston Front Big Brake Kit – Hyundai i30 N / Veloster N / Kona N
• PARAGON Titanium Brake Pad Shims Front – Hyundai i30 N (PDe) / Sedan (CN7) / Kona N
• PARAGON 6-Piston Front Big Brake Kit – Hyundai i30 N Sedan (CN7)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
