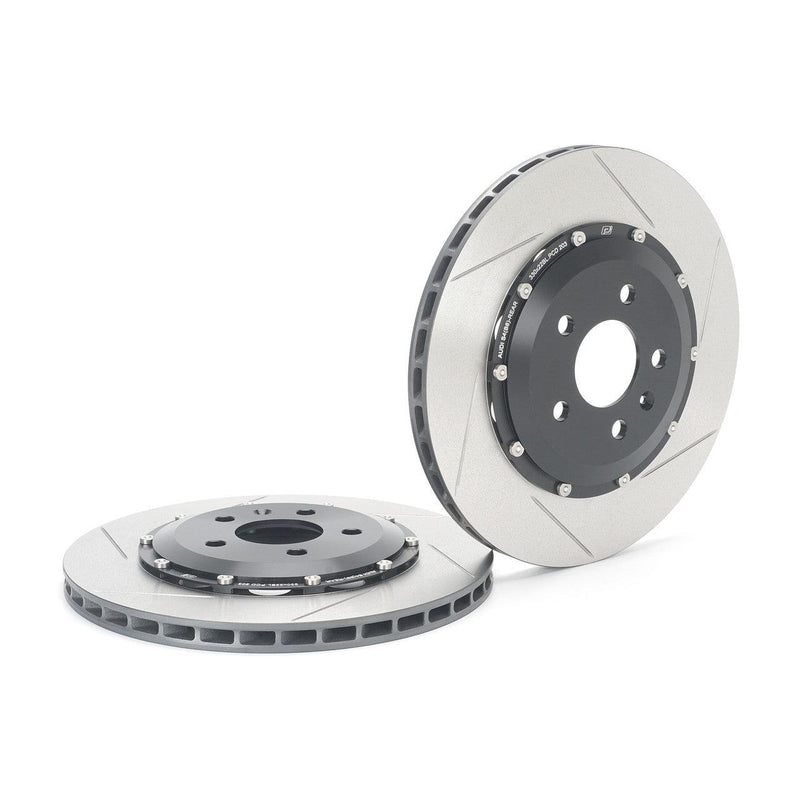

PARAGON 2-Piece Rear Rotors – Audi Q5 (B8/8R) – 300 x 12mm
A pair of 300 x 12mm slotted 2-piece rear rotors that drop straight in for the factory discs on the Audi Q5 (B8/8R). The solid friction ring floats on a lightweight aluminium hat, so it can expand with heat while staying centred on the pads, and the reduced unsprung mass helps handling.
Two hat finishes are offered. The clear hard-anodised hat keeps its colour under sustained track heat, while the black dyed hardcoat suits street and mixed use but can discolour once surface temperatures pass 260°C.
Note: Bolts on with the factory calipers, ABS and brake bias, and takes OEM or aftermarket pads of the factory pad depth (D). Installation by a professional is recommended.
Features
- 300 x 12mm slotted rear rotors with a solid (non-vented) ring
- D-Bobbin (Short) 8-bolt floating mount
- CM-250 high-carbon alloy cast iron rings, heat treated and CBN machined
- CNC-machined 6061-T6 aluminium hats with Type III hard anodising
- Lateral run-out within 0.03mm and balanced to within 2 grams
- Slotted faces improve pad bite and wet-weather braking
- Replaces OEM 8K0615601B / 8K0615601J / 8K0615601M
Pairs Well With
- PARAGON 2-Piece Front Rotors – Audi RS4 (B8/8K) – 365 x 34mm
- PARAGON 2-Piece Front Rotors – Audi RS5 (B8/8T) – 365 x 34mm
- DIXCEL Front Brake Pads – Audi A4 (8K) / A5 (8T) / Q5 / SQ5 (8R)
- Frenkit Brake Caliper Seal Rebuild Kit - Audi A6 (C7) / A7 (4G) / Q5 (8R) - Front Brembo 4-Pot 42mm
- AST Suspension Lowering Springs - Audi Q5 (8R)
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Audi | Q5 | B8 (8R) | 2009-2017 | Rear |
Product
- Brand
- Paragon
- Rotor size
- 300 x 12mm
- Hat finish options
- Clear hard anodised or black hardcoat
- Replaces OEM part
- Audi 8K0615601B / 8K0615601J / 8K0615601M
- Part number(s)
- P2R.117.300.120.17880.07.03.01.R, P2R.117.300.120.17880.07.03.02.R
Details
- Position
- Rear
- Construction
- 2-piece floating
- Ring material
- CM-250 high-carbon cast iron, heat-treated and CBN-machined
- Hat material
- 6061-T6 aluminium, CNC-machined, Type III hard anodised
- Mounting
- D-Bobbin (Short), 8-bolt
- Face / cooling
- Slotted, solid (non-vented) ring
- Run-out / balance
- ≤ 0.03mm lateral run-out / balanced within 2 g
Contents
- One pair of Paragon Performance 300mm x 12mm 2-piece rotor assemblies.
- Hat Material: Black hard coat/hard anodised 6061-T6 aerospace-grade aluminium.
- Bobbins: Stainless steel.
- Anti-Rattle Clips: Included.
- Assembly: Fully assembled and ready to install.
- Detailed installation manual.
