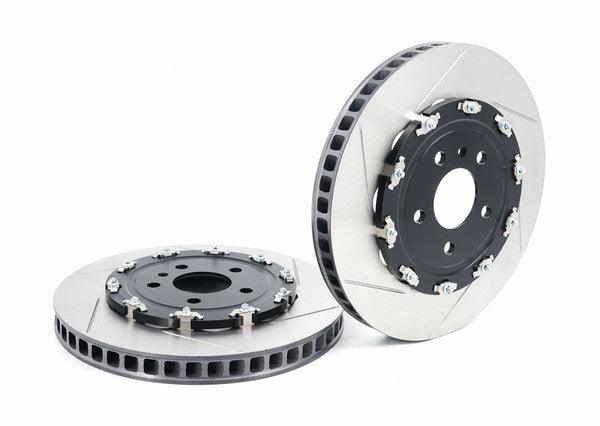

PARAGON 2-Piece Front Rotors
Not sure which option fits your application? Contact Us — we're happy to help.
Track-Ready Performance. Precision Thermal Control.
Upgrade your Audi RS4 B8 with Paragon 2-Piece Front Rotors, a high-performance braking solution designed to outperform OEM discs under aggressive driving and track conditions. These lightweight 365mm x 34mm rotors are engineered to solve the common issues of brake fade and thermal warping found in single-piece factory units.
By utilising a fully-floating 2-piece construction, the high-carbon friction ring is free to expand and contract independently of the aluminium hat. This prevents "coning" and distortion during intense thermal cycling, ensuring a consistent pedal feel and smooth, judder-free braking. With a significant reduction in unsprung mass, these rotors also sharpen your RS4's suspension response and turn-in agility.
Key Features
- Superior Heat Dissipation: Features 48 directional cooling vanes that pull air through the disc, allowing it to run up to 30% cooler than factory rotors.
- Fully-Floating H-Bobbin System: The 10-bolt mounting system with anti-rattle clips ensures a quiet operation on the street while allowing for unrestricted thermal expansion on the track.
- CM-250 High-Carbon Alloy: Rotor rings are cast from a specialized high-carbon alloy for maximum strength and resistance to thermal cracking.
- Weight Optimised: At only 10.43 kg per rotor, these units are 0.68 kg lighter than OEM per side, reducing rotating mass for improved performance.
- Precision Machined: CBN-turned surfaces and a balance tolerance of < 2 grams ensure a lateral run-out of < 0.03mm for immediate pad contact and fast bed-in.
- Slotted Face: The precision-cleared slots increase initial bite and provide a path for gas and debris to escape, maintaining consistent friction in all conditions.
Finish Options
- Clear Hard Anodised: The ultimate motorsport finish. Highly resistant to high temperatures and will not discolour under extreme track heat.
- Black Dyed Hardcoat: Provides a sleek, OEM+ look. Best suited for high-performance road use (may discolour if surface temperatures exceed 260°C).
Fitment Notes
- Direct bolt-on installation using original OEM calipers.
- Maintains factory brake bias and full ABS functionality.
- Compatible with all OEM and aftermarket pads that utilise the factory pad depth.
Vehicle Compatibility
| Make | Model | Chassis | Year | Notes |
|---|---|---|---|---|
| Audi | RS4 | B8 (8K) | 2012 - 2015 | Front Fitment Only |
Technical Specifications
Technical Specifications
- Diameter: 365mm (14.37")
- Thickness (New): 34mm (1.34")
- Thickness (Min): 32mm (1.26")
- Type: 2-Piece Fully Floating
- Face Pattern: Slotted
- Ventilation: Directional Ventilated (48 Vanes)
- Hat Material: 6061-T6 Billet Aluminium
- Friction Ring: CM-250 High Carbon Alloy Cast Iron
- Rotor Finish: CBN Turned
Assembly & Installation
- Direct Bolt-on: 1:1 replacement for factory 365mm discs.
- System: Supplied as a fully assembled pair (Left & Right).
- Components: Includes H-Bobbins and Anti-Rattle clips.
- Bedding-In: Proper heat-cycling required for maximum rotor life.
Cross Reference
- OEM Audi: 420615301D / 4S0615301B / 8T0615301
- EBC: SG2F009
- StopTech: 128.33122 / 228.33122
- DBA: 52834 / 52834W
Contents
1x Pair of Paragon 2-Piece 365mm x 34mm Rotor Assemblies (Fully Assembled)
2x 6061-T6 Aerospace-Grade Aluminium Hats (Hard Anodised)
2x CM-250 High-Carbon Alloy Friction Rings
Stainless Steel H-Bobbin Hardware with Anti-Rattle Clips
Detailed Installation Manual
