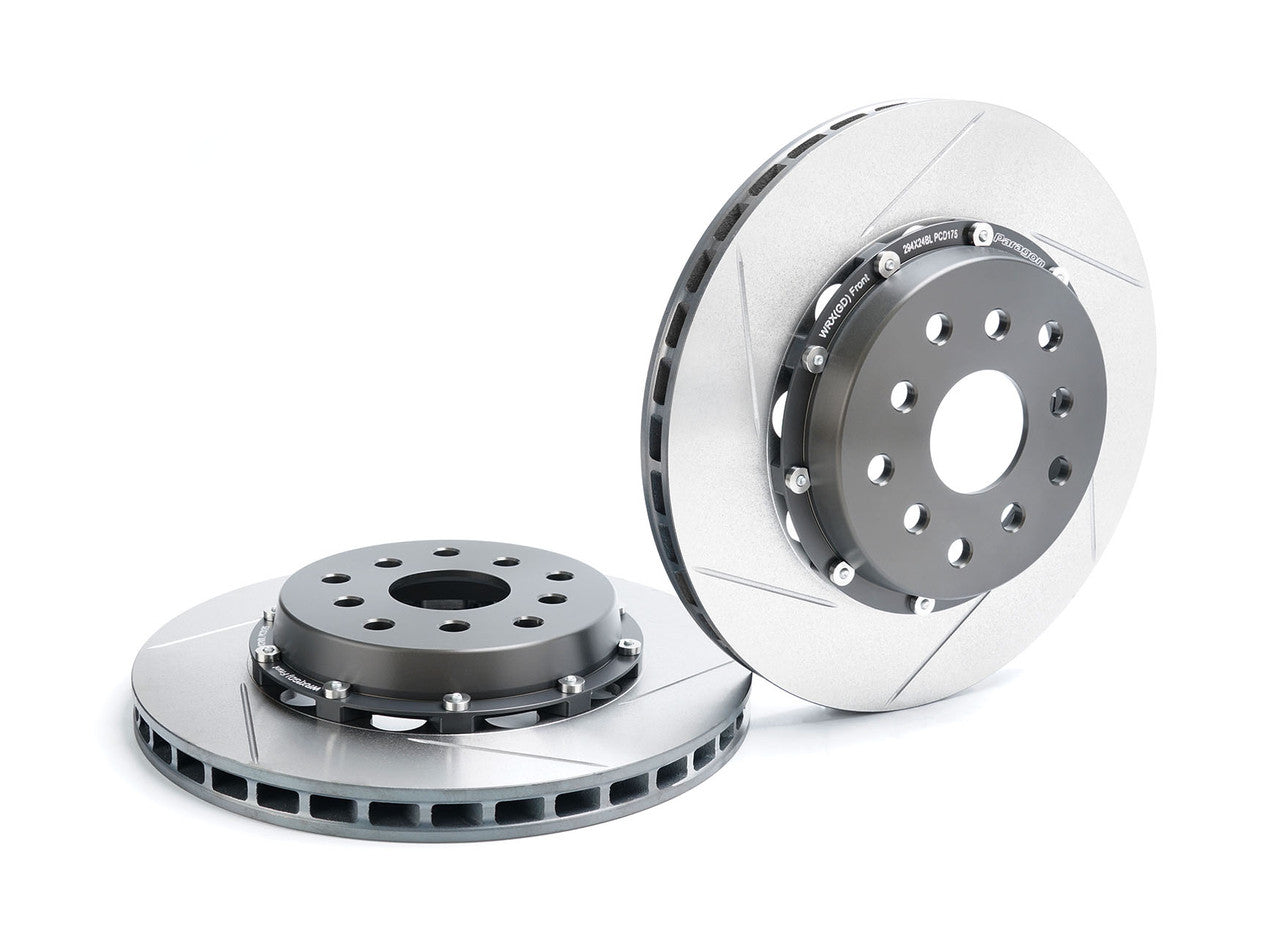

PARAGON 2-Piece Front Rotors – Subaru Impreza WRX (GDA/GGA) – 294 x 24mm
These PARAGON 2-piece front rotors replace the factory rotors on the Subaru Impreza WRX (GDA/GGA) with a lighter floating assembly made for track days and spirited road driving. Sold as a pair, each 294 x 24mm rotor joins a slotted cast-iron ring to an aluminium hat to cut unsprung weight and resist fade and judder over long sessions.
Choose a black hardcoat anodised hat or a clear hard anodised hat. The clear finish holds its colour under extreme heat and is the better pick for track use, while the dyed black finish can discolour once temperatures pass about 260°C.
Note: Suits the GDA sedan and GGA wagon with the factory Sumitomo calipers. Bolts on with no modifications, works with the factory ABS and keeps the factory brake bias. Use OEM pads or aftermarket pads with the same pad depth. Installation by a professional is recommended.
Features
- Fully floating 2-piece design, long D-Bobbin 10-bolt mounting
- CM-250 high-carbon cast-iron rings, heat treated and CBN machined, run-out held within 0.03mm
- Directional vanes run up to 30% cooler than the factory rotors, with slotted faces that keep the pad contact surface clean
- CNC-machined 6061-T6 aluminium hats, Mil-spec Type III hard anodised
- Dual drilled for 5x100 and 5x114.3 stud patterns
- Weight 5.2 kg each, about 1.1 kg lighter than the factory rotor
- Replaces OEM part 26300AE061 / 26300AE060 / 26310AC040 / 26310AC041
Pairs Well With
- PARAGON 4-Piston Rear Big Brake Kit – Subaru WRX / STI (GR/GV/VA)
- PARAGON 6-Piston Front Big Brake Kit – Subaru WRX / STI (GC/GD/GR/VA)
- PARAGON Titanium Brake Pad Shims Front – Civic Type R (FK8/FL5) / Evo 5-10 / WRX STI
- PARAGON Rear 1-Piece Rotors – Subaru WRX (GD/GG) – 290 x 18mm
- PARAGON Front 1-Piece Rotors – Subaru WRX (GC/GD/GG/GE/GH/GR/GV) / STI (GC/GF) / BRZ (ZC6/ZD8) / Toyota 86 GTS (ZN6/ZN8) – 295 x 25mm
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Subaru | Impreza WRX sedan | GDA | 2001–2007 | Front – OEM Sumitomo calipers only |
| Subaru | Impreza WRX wagon | GGA | 2001–2007 | Front – OEM Sumitomo calipers only |
Product
- Brand
- Paragon
- Rotor size (diameter x thickness)
- 294 x 24mm
- Hat finish options
- Black hardcoat (.01) or clear hard anodised (.02)
- Replaces OEM part no.
- 26300AE061 / 26300AE060 / 26310AC040 / 26310AC041
- Part number(s)
- P2R.041.294.240.17500.08.03.01.F / .02.F
Details
- Position
- Front
- Construction
- 2-piece floating, slotted face
- Ring material
- CM-250 high-carbon alloy cast iron, heat-treated and CBN-machined
- Hat material
- CNC-machined 6061-T6 aluminium, Type III hard anodised
- Rotor-to-hat mounting
- D-Bobbin (Long), 10-bolt
- Cooling
- Directional ventilation vanes, up to 30% cooler than OEM
- Tolerances
- Lateral run-out ≤ 0.03mm; balanced within 2 g
- Weight (each)
- 5.2 kg (approx. 1.1 kg lighter than OEM)
- PCD
- Multi-fit 5x100 / 5x114.3
- Sold as
- Pair
Contents
- One pair of Paragon Performance 294mm x 24mm 2-piece rotor assemblies.
- Hat Material: Black hard coat/hard anodised 6061-T6 aerospace-grade aluminium.
- Bobbins: Stainless steel.
- Anti-Rattle Clips: Included.
- Assembly: Fully assembled and ready to install.
- Detailed installation manual.
