Nitto V2 I-Beam Connecting Rods - Nissan RB25DET / RB26DETT - Skyline / Skyline GT-R (R32 / R33 / R34) / Stagea (WC34)

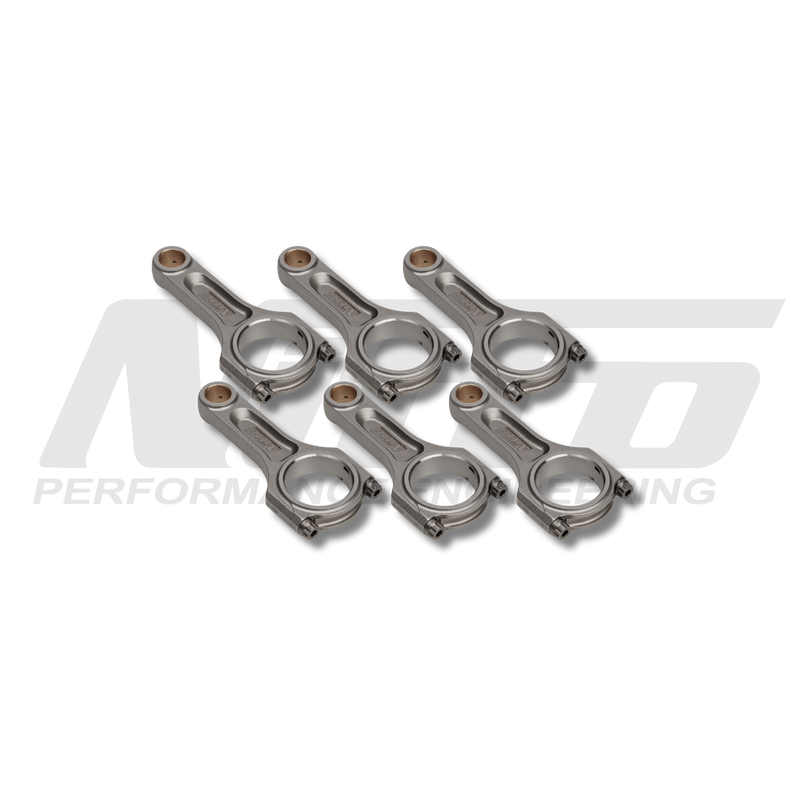

A set of six of Nitto's flagship V2 steel connecting rods for the Nissan RB26DETT and RB25DET in R32 to R34 Skylines. The V2 is the rod for serious drag and time attack builds, with extra material in the beam and an upgraded pin bush.
Choose the big end to suit your crankshaft. The standard journal rod uses 3/8" ARP 2000 bolts and fits a standard-size rod journal (RB25 and RB26). The wide journal rod is listed for the RB26, uses a wider, larger-diameter big-end bearing with 7/16" ARP 2000 bolts, and needs a Nitto wide-journal crankshaft. Both are 121.5 mm long.
Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.
Features
- Double-melted 4340 billet steel, one-piece forging, X-ray and sonic grade tested
- Revised I-beam pocket with extra material in key areas
- Profiled beam sides and pin end
- CHE pin bushes
- ARP 2000 rod bolts (3/8" standard journal, 7/16" wide journal), Custom Age 625+ optional
- Quenched, heat treated and shot peened (38 HRC), doweled cap
- Balanced to within ±1 g per set
Warranty
Nitto parts are made for racing and off-road use. Check every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Nitto will repair or replace a defective part at its option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
Pairs Well With
- Nitto Billet Crankshaft - Nissan RB26DETT - Skyline GT-R (R32 / R33 / R34)
- Nitto Forged Stroker Pistons - Nissan RB26DETT - Skyline GT-R (R32 / R33 / R34)
- Nitto Forged Pistons - Nissan RB26DETT - Skyline GT-R (R32 / R33 / R34)
Shop more: Nitto
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Nissan | Skyline GTS-T | R33 (ECR33) | 1993–1998 | RB25DET (Japanese import) |
| Nissan | Stagea | WC34 | 1996–1998 | RB25DET (Japanese import, pre-NEO models) |
| Nissan | Skyline GT-R | R32 (BNR32) | 1989–1994 | RB26DETT (Japanese import) |
| Nissan | Skyline GT-R | R33 (BCNR33) | 1995–1998 | RB26DETT (Japanese import) |
| Nissan | Skyline GT-R | R34 (BNR34) | 1999–2002 | RB26DETT (Japanese import) |
Technical Specifications
| Spec | Value |
|---|---|
| Brand | Nitto |
| Product | V2 I-beam connecting rods (set of 6) |
| Engine | Nissan RB26DETT / RB25DET (wide journal: RB26) |
| Material | 4340 billet steel, double melted, one-piece forging |
| Beam type | V2 I-beam |
| Length | 121.5 mm |
| Rod bolts | Standard journal: ARP 2000 3/8"; Wide journal: ARP 2000 7/16" (Custom Age 625+ optional) |
| Pin bush | CHE |
| Balance | ±1 g per set |
| Warranty | Nitto limited warranty (racing use) |
| Instructions | Nitto installation notes (link below) |
| Part number(s) | NIT-ROD-RB26IV2, NIT-ROD-RB26I21XWDV2 |
Contents
1 x set of 6 Nitto V2 connecting rods with ARP 2000 rod bolts
