Nitto Forged Pistons Nissan RB26DETT Skyline GT-R (R32 / R33 / R34)

Nitto Forged Pistons - Nissan RB26DETT - Skyline GT-R (R32 / R33 / R34)

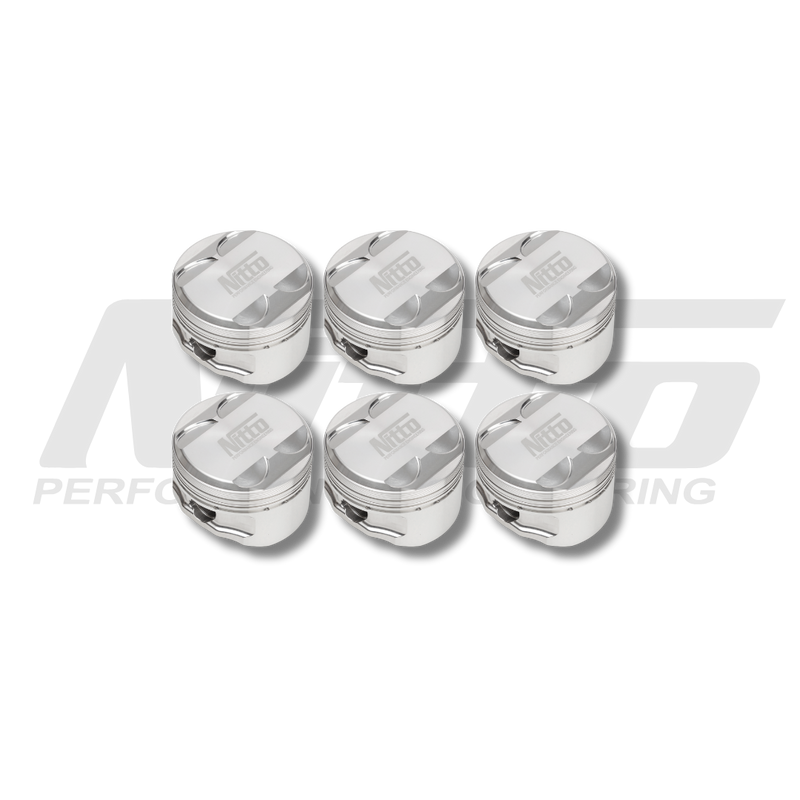

A set of six forged pistons for the Nissan RB26DETT in the R32, R33 and R34 Skyline GT-R. They suit a standard-stroke 2.6-litre rebuild and are just as at home in a hard-driven street GT-R as in a drag or time attack car.

Choose the bore size to suit your block. 86.5 mm is a 0.020" oversize with a +19 cc dome; 87.0 mm is a 0.040" oversize with a +18 cc dome. For a 2.7L or 2.8L build, see the matching Nitto RB26 stroker pistons.

Every Nitto piston is produced by CP Carrillo in the USA to Nitto's own specification. They are forged from CP's low-silicon 2618 alloy in the Turbo HD forging, paired with a PVD-coated ring set for tight bore sealing under boost, and fitted with CP's 9310 wrist pins, which are Rockwell tested, case hardened and cryogenically treated.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Forged from low-silicon 2618 aluminium, Turbo HD forging
• Made by CP Carrillo to Nitto's specification
• PVD-coated ring set for strong bore sealing and low friction
• 9310 wrist pins (0.866" diameter, 2.500" long), 100% Rockwell tested, case hardened and cryo treated
• Forced double pin oiling to keep the wrist pin lubricated
• Anti-detonation grooves to help protect the top ring
• Accumulator grooves to reduce top ring flutter and improve ring seal

Kit Contents

• 6 x Nitto / CP Carrillo forged pistons
• 6 x PVD-coated ring sets
• 6 x 9310 wrist pins

Warranty

Nitto parts are made for racing and off-road use. Check every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Nitto will repair or replace a defective part at its option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
