Nitto Forged Stroker Pistons Nissan RB26DETT Skyline GT-R (R32 / R33 / R34)

Nitto Forged Stroker Pistons - Nissan RB26DETT - Skyline GT-R (R32 / R33 / R34)

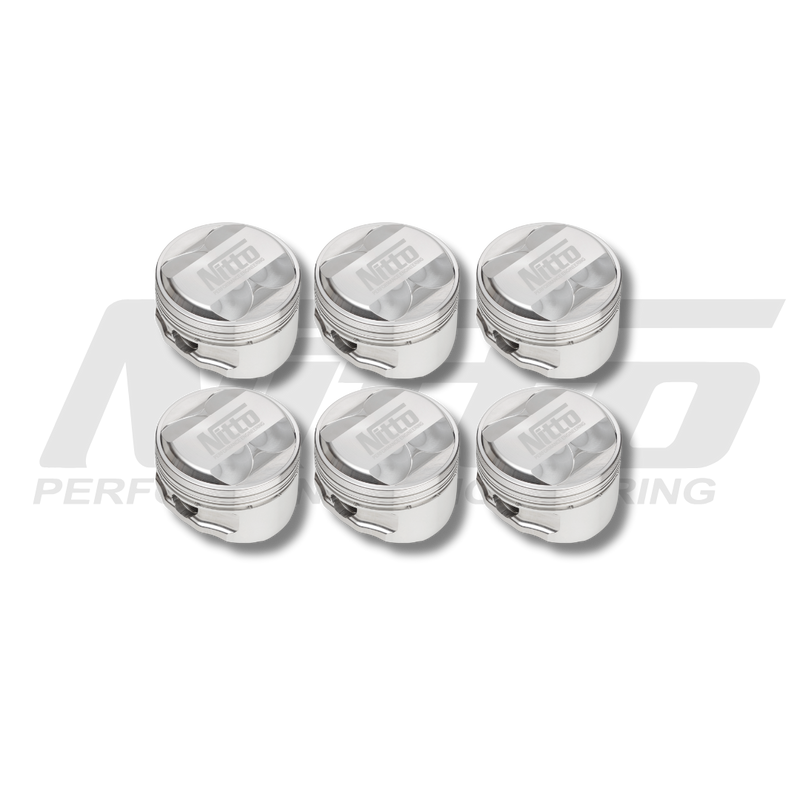

A set of six forged pistons for building a 2.7-litre or 2.8-litre RB26DETT in the R32, R33 or R34 Skyline GT-R. Matched to Nitto's stroker crankshafts, they add capacity while keeping the RB26's appetite for revs, for street, drag and circuit builds.

First pick the capacity to match your crank: 2.7L for a 75.7 mm stroke or 2.8L for a 77.7 mm stroke. Then pick the bore: 86.5 mm (0.020" oversize) or 87.0 mm (0.040" oversize). Dome volumes are 2.7L 86.5 mm +17 cc, 2.7L 87.0 mm +16 cc, 2.8L 86.5 mm +18.5 cc and 2.8L 87.0 mm +17 cc.

Every Nitto piston is produced by CP Carrillo in the USA to Nitto's own specification. They are forged from CP's low-silicon 2618 alloy in the Turbo HD forging, paired with a PVD-coated ring set for tight bore sealing under boost, and fitted with CP's 9310 wrist pins, which are Rockwell tested, case hardened and cryogenically treated.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Forged from low-silicon 2618 aluminium, Turbo HD forging
• Made by CP Carrillo to Nitto's specification
• PVD-coated ring set for strong bore sealing and low friction
• 9310 wrist pins (0.866" diameter, 2.500" long), 100% Rockwell tested, case hardened and cryo treated
• Forced double pin oiling to keep the wrist pin lubricated
• Anti-detonation grooves to help protect the top ring
• Accumulator grooves to reduce top ring flutter and improve ring seal

Kit Contents

• 6 x Nitto / CP Carrillo forged pistons
• 6 x PVD-coated ring sets
• 6 x 9310 wrist pins

Warranty

Nitto parts are made for racing and off-road use. Check every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Nitto will repair or replace a defective part at its option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
