Nitto Stroker Kit Mitsubishi 4G63 Lancer Evolution IV–IX (CN9A / CP9A / CT9A)

Nitto Stroker Kit - Mitsubishi 4G63 - Lancer Evolution IV–IX (CN9A / CP9A / CT9A)

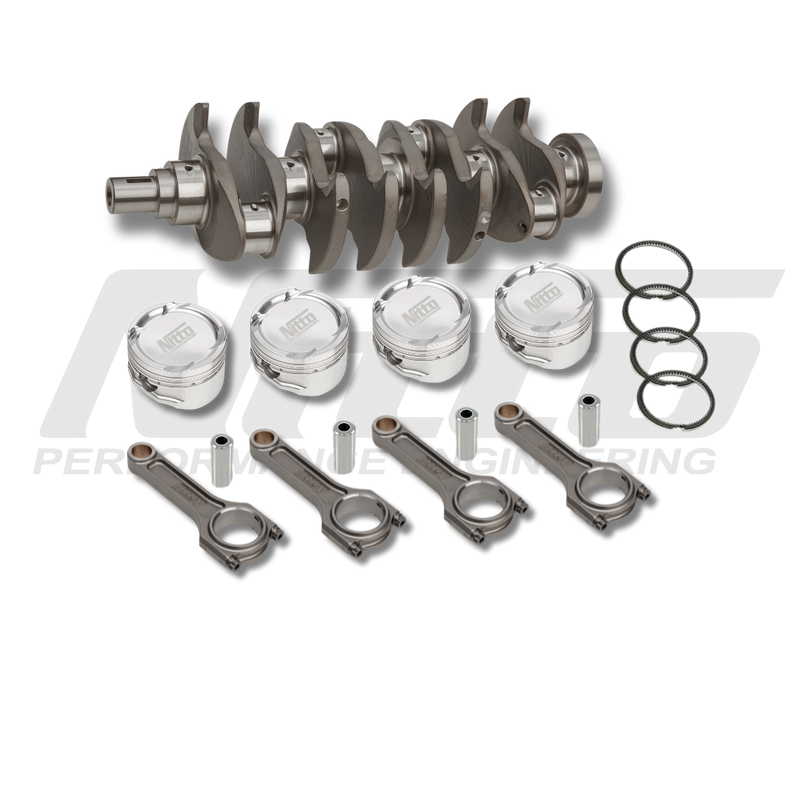

A complete Nitto rotating assembly that takes the Mitsubishi 4G63T in the Lancer Evolution IV to IX from 2.0L to 2.2L or 2.3L. Each kit combines an EN40B billet crankshaft, 4340 billet connecting rods and CP-made forged pistons, and suits strong street, drag and circuit builds.

Choose the capacity first: the 2.2L kit uses a 94 mm stroke crank with 153 mm rods, and the 2.3L kit uses a 100 mm stroke crank with 150 mm rods. Then choose the rod type, H-beam for solid street builds or I-beam for higher power, and the piston bore, 85.5 mm (+0.020") or 86.0 mm (+0.040").

The pistons are made by CP Carrillo to Nitto's specification from low-silicon 2618 aluminium in Turbo HD forging, with PVD rings, 9310 wrist pins and accumulator grooves. The rods are double-melted 4340 billet with 3/8" ARP 2000 bolts. The EN40B billet crank has knife-edged counterweights to cut through crankcase oil mist and help the engine rev freely.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• EN40B billet crankshaft, knife-edged and nitrided
• Double-melted 4340 billet H-beam or I-beam rods
• 3/8" ARP 2000 rod bolts
• CP-made 2618 forged pistons in Turbo HD forging
• PVD ring set and 9310 wrist pins
• Accumulator and friction-reduction grooves on the pistons

Kit Contents

• 1 x Nitto EN40B billet crankshaft (94 mm or 100 mm stroke)
• 4 x Nitto connecting rods (H-beam or I-beam) with ARP 2000 bolts
• 4 x Nitto forged pistons with PVD rings and 9310 wrist pins

Warranty

Nitto parts are made for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Under Nitto's limited warranty a defective part will be repaired or replaced at Nitto's option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
