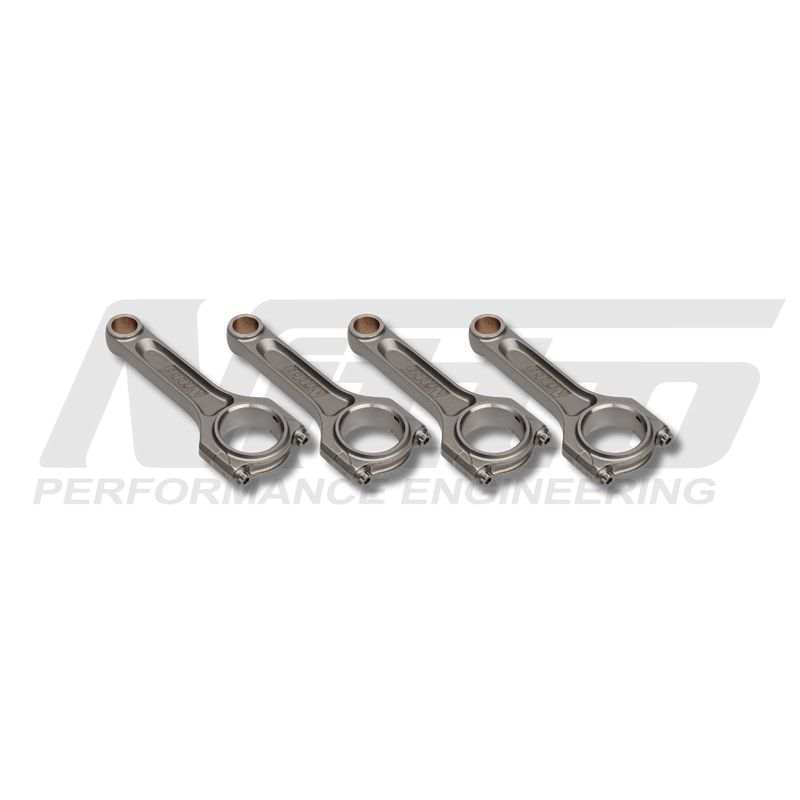

Nitto V2 I-Beam Connecting Rods Mitsubishi 4G63 Lancer Evolution IV–IX (CN9A / CP9A / CT9A)

Nitto V2 I-Beam Connecting Rods - Mitsubishi 4G63 - Lancer Evolution IV–IX (CN9A / CP9A / CT9A)

The Nitto V2 is the top-tier steel connecting rod for the Mitsubishi 4G63T in the Lancer Evolution IV to IX. It is designed for the highest-power drag and time attack engines, beyond what a standard I-beam is made for.

Choose 153 mm to suit Nitto's 2.2L (94 mm stroke) combination, or 156 mm as a longer option for custom combinations matched to your piston's compression height. Both use larger 7/16" ARP 2000 bolts.

The V2 is Nitto's top steel connecting rod. Compared with the standard I-beam, the beam pocket is revised to put more material where it matters, the beam sides and pin end are profiled rather than straight cut, and the pin end runs a CHE bush instead of silicone bronze. Nitto reports V2 rods exceeding 2000 hp in 2JZ, RB30 and Barra engines.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• One-piece forging from double-melted 4340 billet steel, X-ray and sonic grade tested
• Quenched, heat treated and shot peened to 38 HRC
• Doweled caps for accurate cap alignment
• ARP 2000 series rod bolts (7/16")
• CHE pin-end bushes
• Balanced to within ±1 g per set, with bores sized to ±0.0001" on Sunnen honing equipment
• Fully CNC profiled, drilled and tapped
• Revised I-beam pocket with extra material in key areas, plus profiled beam sides and pin end

Kit Contents

• 4 x Nitto V2 connecting rods
• ARP 2000 rod bolts
• CHE pin bushes (fitted)

Warranty

Nitto parts are made for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Under Nitto's limited warranty a defective part will be repaired or replaced at Nitto's option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
