Nitto I-Beam Connecting Rods Nissan RB30 Commodore (VL) / Skyline (R31)

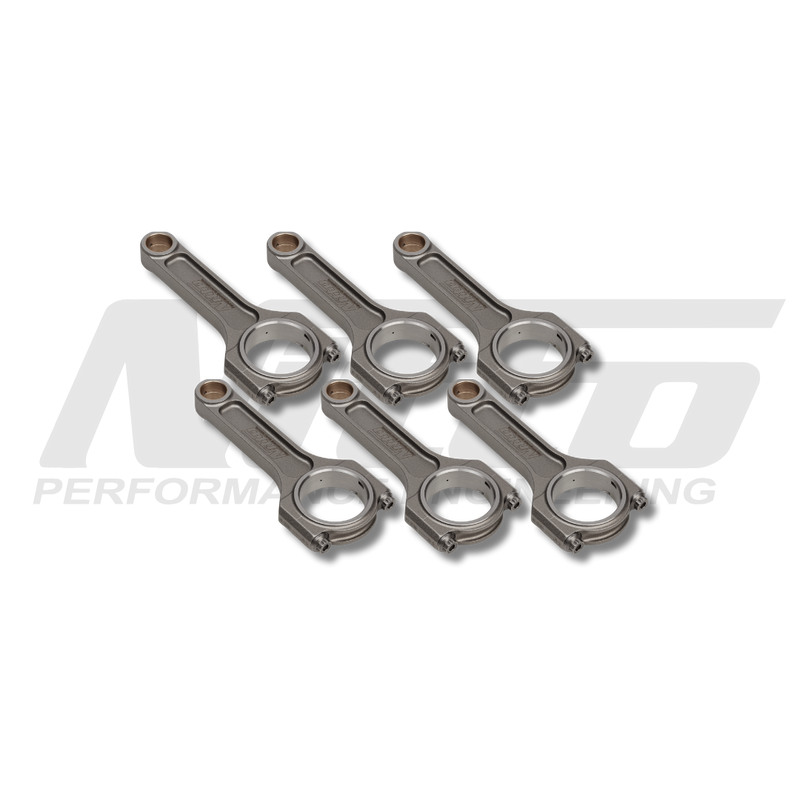

Nitto I-Beam Connecting Rods - Nissan RB30 - Commodore (VL) / Skyline (R31)

Nitto's RB30 I-beam rods are built for RB30 engines that go beyond a mid-level build, from turbo street cars to serious drag and circuit engines. They suit the RB30 from the VL Commodore and R31 Skyline in SOHC or DOHC-head form.

Match the pin size to your pistons: 21 mm suits Nitto's standard-stroke RB30 pistons (0.827" pin), while 22 mm suits the stroker pistons (0.866" pin). The 22 mm rod also comes in a wide-journal V1.5 design for wide big-end journal crankshafts.

Nitto I-beams are machined from double-melted 4340 forged billet as a one-piece forging, and have a long record of handling heavy punishment. They use 7/16" ARP 2000 rod bolts and silicon bronze pin bushes.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Double-melted 4340 billet steel, one-piece forging
• X-ray and sonic grade tested, quenched, heat treated and shot peened (38 HRC)
• Doweled cap for accurate cap alignment
• Silicon bronze pin end bushes
• ARP 2000 rod bolts, with ARP Custom Age 625+ available as an upgrade
• Balanced to within ±1 g per set; big and small end bores sized to ±0.0001" on Sunnen honing equipment

Kit Contents

• 6 x Nitto I-beam connecting rods with 7/16" ARP 2000 rod bolts

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its discretion, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
