Nitto Forged Stroker Pistons Nissan RB30 DOHC RB25 / RB26 Head Conversion

Nitto Forged Stroker Pistons - Nissan RB30 DOHC - RB25 / RB26 Head Conversion

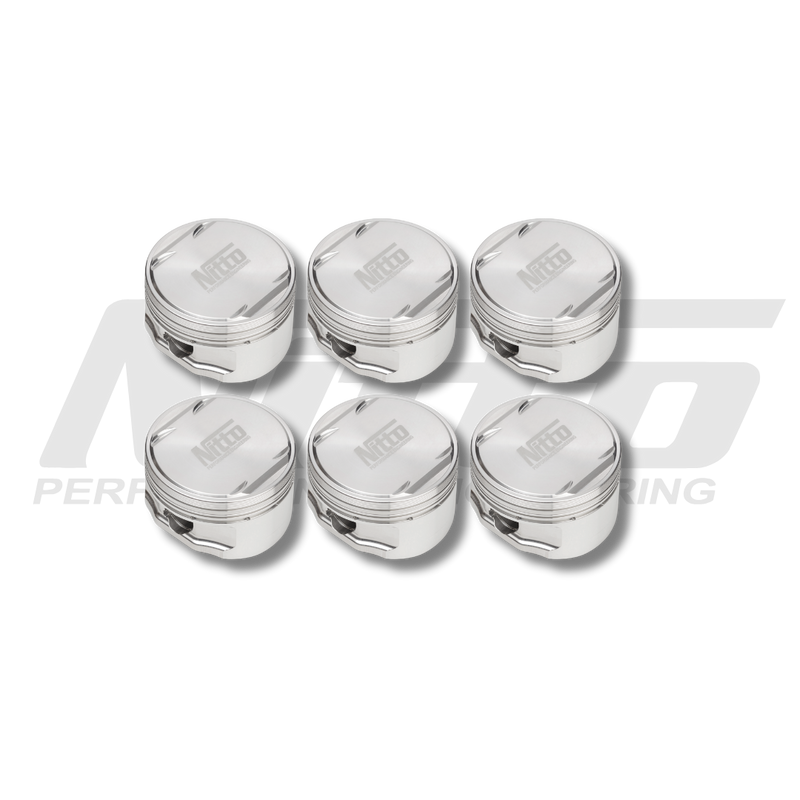

Nitto's 3.2L stroker pistons suit RB30 bottom ends running an RB25 or RB26 twin-cam head with a 90 mm stroke crank. This combination is a favourite for high-power drag and street builds, and these are the same style of piston used in Nitto's RB30 3.2L kits.

Choose 86.0 mm (standard bore) or 86.5 mm (+0.020") with a 6 cc dome, or 87.0 mm (+0.040") with a 5 cc dome. All use a 0.866" wrist pin.

Nitto pistons are made by CP Carrillo to Nitto's own specification and are forged from CP's low-silicon 2618 aluminium in the Turbo HD forging. Each set comes with a PVD-coated ring set for strong bore sealing under boost, plus CP 9310 wrist pins that are Rockwell tested, case hardened and cryogenically treated.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Made by CP Carrillo to Nitto's specification
• 2618 low-silicon aluminium, Turbo HD forging
• PVD-coated ring set for better bore sealing and less friction
• 9310 wrist pins (0.866"), 100% Rockwell tested, case hardened and cryo treated
• Forced double pin oiling
• Anti-detonation and accumulator grooves to protect the top ring and improve ring seal

Kit Contents

• 6 x Nitto forged DOHC stroker pistons
• PVD-coated ring set
• 6 x CP 9310 wrist pins

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its discretion, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
