Nitto Forged Pistons Nissan RB30 DOHC RB25 / RB26 Head Conversion

Nitto Forged Pistons - Nissan RB30 DOHC - RB25 / RB26 Head Conversion

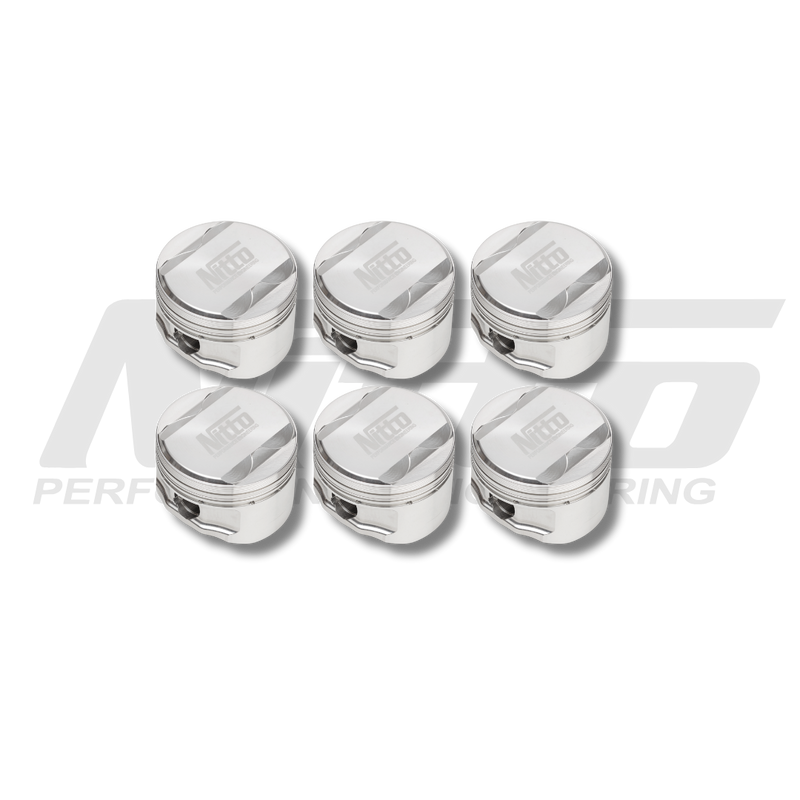

These Nitto forged pistons are for the popular RB30 "RB30DET" combination, where an RB30 bottom end is paired with an RB25 or RB26 twin-cam head. They keep the factory 85 mm stroke and suit turbo street, drag and circuit builds that need a strong forged piston.

Pick the bore size to match your block: 86.5 mm (+0.020") with a 12 cc dome, or 87.0 mm (+0.040") with an 11 cc dome.

Nitto pistons are made by CP Carrillo to Nitto's own specification and are forged from CP's low-silicon 2618 aluminium in the Turbo HD forging. Each set comes with a PVD-coated ring set for strong bore sealing under boost, plus CP 9310 wrist pins that are Rockwell tested, case hardened and cryogenically treated.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Made by CP Carrillo to Nitto's specification
• 2618 low-silicon aluminium, Turbo HD forging
• PVD-coated ring set for better bore sealing and less friction
• 9310 wrist pins (0.827"), 100% Rockwell tested, case hardened and cryo treated
• Forced double pin oiling
• Anti-detonation and accumulator grooves to protect the top ring and improve ring seal

Kit Contents

• 6 x Nitto forged DOHC pistons
• PVD-coated ring set
• 6 x CP 9310 wrist pins

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its discretion, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
