Nitto Forged Stroker Pistons Nissan RB30 SOHC Commodore (VL) / Skyline (R31)

Nitto Forged Stroker Pistons - Nissan RB30 SOHC - Commodore (VL) / Skyline (R31)

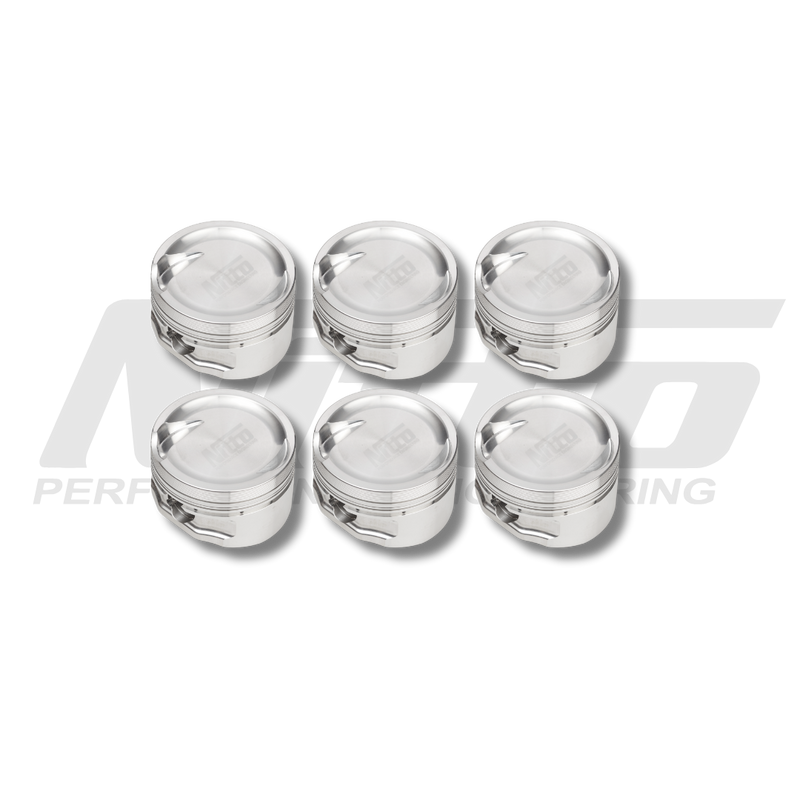

These Nitto forged pistons are designed for a 3.2L stroked SOHC RB30, as fitted to the VL Commodore and R31 Skyline. They suit builders adding stroke for more torque in a turbo street car or drag build.

This set is 86.5 mm (+0.020") bore with two valve reliefs and a 13 cc dish, using a 0.866" wrist pin.

Nitto pistons are made by CP Carrillo to Nitto's own specification and are forged from CP's low-silicon 2618 aluminium in the Turbo HD forging. Each set comes with a PVD-coated ring set for strong bore sealing under boost, plus CP 9310 wrist pins that are Rockwell tested, case hardened and cryogenically treated.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Made by CP Carrillo to Nitto's specification
• 2618 low-silicon aluminium, Turbo HD forging
• PVD-coated ring set for better bore sealing and less friction
• 9310 wrist pins (0.866"), 100% Rockwell tested, case hardened and cryo treated
• Forced double pin oiling
• Anti-detonation and accumulator grooves to protect the top ring and improve ring seal

Kit Contents

• 6 x Nitto forged SOHC stroker pistons
• PVD-coated ring set
• 6 x CP 9310 wrist pins

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its discretion, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
