Nitto Forged Pistons Ford Barra 4.0 Falcon (BA / BF / FG / FG X) / Territory (SX / SY / SZ)

Nitto Forged Pistons - Ford Barra 4.0 - Falcon (BA / BF / FG / FG X) / Territory (SX / SY / SZ)

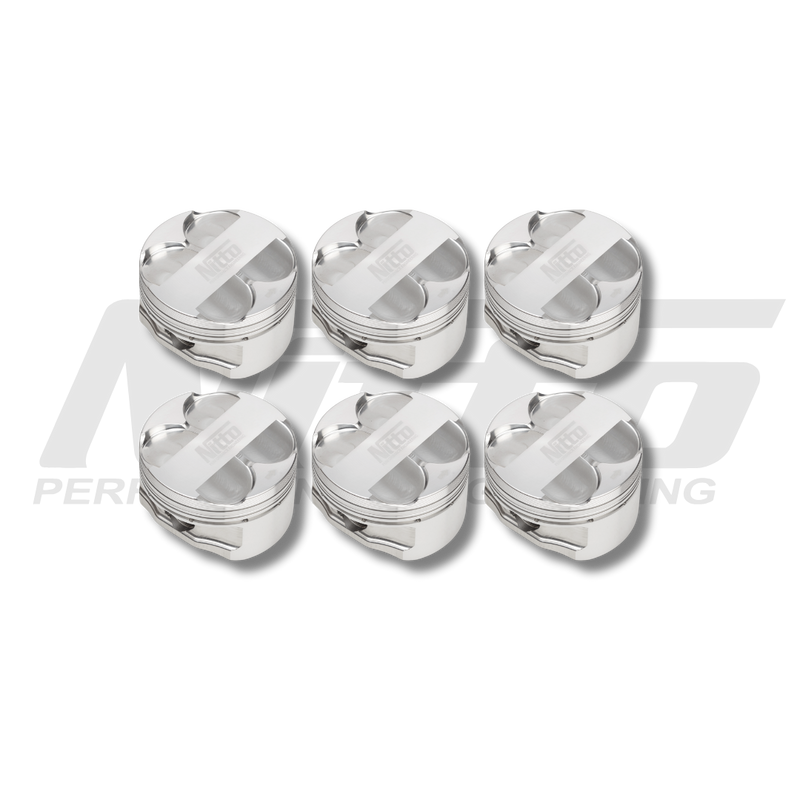

A set of six forged pistons for the standard-stroke 4.0 litre Barra six, as found in the BA to FG X Falcon, XR6 Turbo, FPV F6 and Territory. They use CP's Turbo HD forging, making them a strong choice for high-boost street, drag and circuit engines.

Pick the bore to suit your block: 92.5 mm (+0.010") or 92.75 mm (+0.020"). Both have a 4 cc dish.

Nitto pistons are produced by CP Carrillo in California to Nitto's own specification. They are machined from CP's low-silicon 2618 aluminium alloy using the Turbo HD forging, and each set comes with a PVD ring set and CP's 9310 steel wrist pins, which are case hardened, cryogenically treated and Rockwell tested.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Standard-stroke 4.0L Barra design, 4 cc dish
• Made by CP Carrillo to Nitto's specification
• Low-silicon 2618 forged aluminium, Turbo HD forging
• PVD coated ring set for strong bore sealing under boost
• 9310 wrist pins: case hardened, cryogenically treated and 100% Rockwell tested
• Forced double pin oiling to keep the wrist pin lubricated
• Anti-detonation grooves to protect the top ring under high load

Kit Contents

• 6 x Nitto/CP forged pistons
• PVD coated ring set
• 9310 wrist pins

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its option, and any modification to a part voids the warranty. Full terms: Nitto limited warranty (PDF).
