Nitto H-Beam Connecting Rods Ford Barra 4.0 Falcon (BA / BF / FG / FG X) / Territory (SX / SY / SZ)

Nitto H-Beam Connecting Rods - Ford Barra 4.0 - Falcon (BA / BF / FG / FG X) / Territory (SX / SY / SZ)

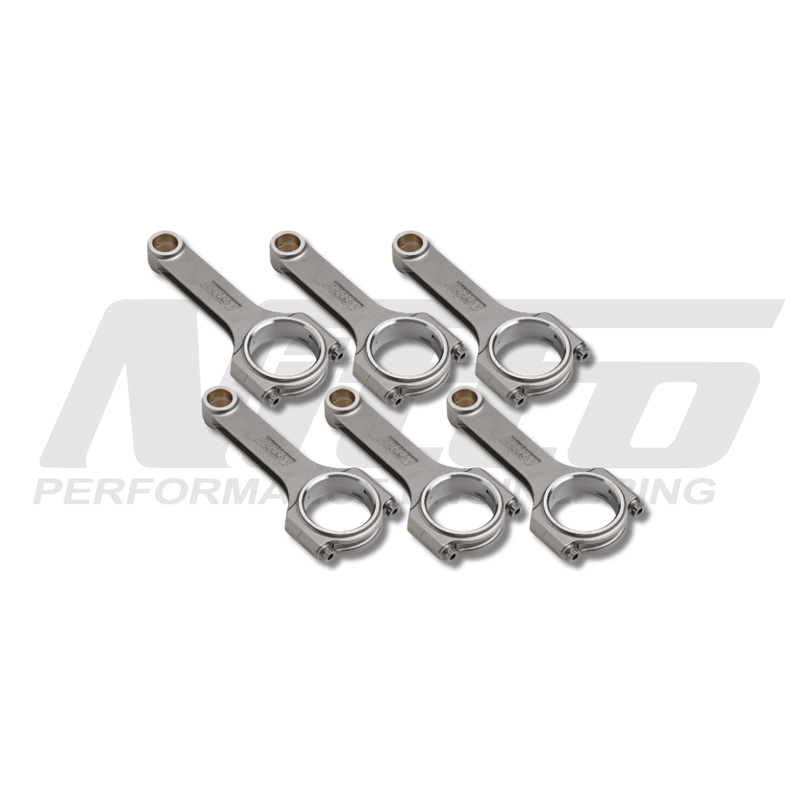

A set of six H-beam connecting rods for the standard-stroke 4.0 litre Barra six, as fitted to the BA to FG X Falcon, XR6 Turbo, FPV F6 and Territory. They are an affordable upgrade over factory rods for mid-level street and track builds.

One length is listed: 153.86 mm centre to centre, to suit the standard-stroke 4.0L crank. For a 3.8L de-stroke, see the Nitto V2 rods in 158 mm.

Every Nitto steel rod starts as double-melted 4340 billet, a cleaner material than the single-melt steel common in the aftermarket, and is forged as one piece for a consistent grain structure. The H-beam is Nitto's value option: a simpler design to machine that keeps the price down for builds that need more strength than stock but not the heavy-duty margin of an I-beam.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Double-melted 4340 billet steel, one-piece forging, X-ray and sonic grade tested
• Quenched, heat treated and shot peened (38 HRC)
• Doweled caps for accurate cap alignment
• ARP 2000 rod bolts, 7/16", with an optional ARP Custom Age 625+ bolt upgrade
• Silicon bronze pin-end bushes
• Balanced to within ±1 gram per set, bores held to ±0.0001"
• Big and pin ends sized on Sunnen hones with diamond tooling; 100% CNC profiled, drilled and tapped

Kit Contents

• 6 x Nitto 4340 H-beam connecting rods
• ARP 2000 7/16" rod bolts

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its option, and any modification to a part voids the warranty. Full terms: Nitto limited warranty (PDF).
