Nitto V2 I-Beam Connecting Rods Ford Barra 4.0 Falcon (BA / BF / FG / FG X) / Territory (SX / SY / SZ)

Nitto V2 I-Beam Connecting Rods - Ford Barra 4.0 - Falcon (BA / BF / FG / FG X) / Territory (SX / SY / SZ)

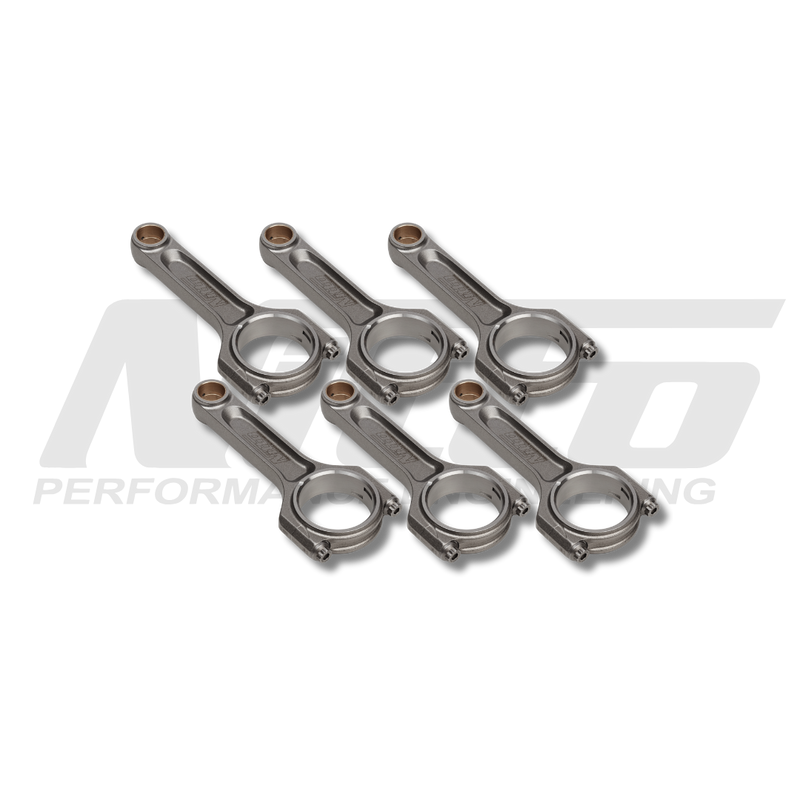

The V2 is Nitto's top-of-the-range steel rod, and this set of six suits the Barra six from the BA to FG X Falcon, XR6 Turbo, FPV F6 and Territory. Nitto reports V2 rods passing 2000 hp in Barra, RB30 and 2JZ engines, so they are aimed squarely at big-power drag, roll racing and time attack builds.

Choose the length to match your crank: 153.86 mm for a standard-stroke 4.0L engine, or 158 mm for a 3.8L de-stroke built around the 94 mm crank.

Every Nitto steel rod starts as double-melted 4340 billet, a cleaner material than the single-melt steel common in the aftermarket, and is forged as one piece for a consistent grain structure. Compared with the standard I-beam, the V2 has a reworked beam pocket that leaves more material where it matters, profiled beam sides and pin end instead of straight-cut ones, and CHE pin bushes made from CHE's own bush material.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Revised I-beam pocket with extra material in key areas
• Profiled beam sides and pin end
• CHE pin-end bushes
• Double-melted 4340 billet steel, one-piece forging, X-ray and sonic grade tested
• Quenched, heat treated and shot peened (38 HRC)
• ARP 2000 7/16" rod bolts, with an optional ARP Custom Age 625+ bolt upgrade
• Balanced to within ±1 gram per set, bores held to ±0.0001"

Kit Contents

• 6 x Nitto V2 4340 I-beam connecting rods
• ARP 2000 7/16" rod bolts

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its option, and any modification to a part voids the warranty. Full terms: Nitto limited warranty (PDF).
