AWE SwitchPath Exhaust – Ford Ranger Raptor (P703)

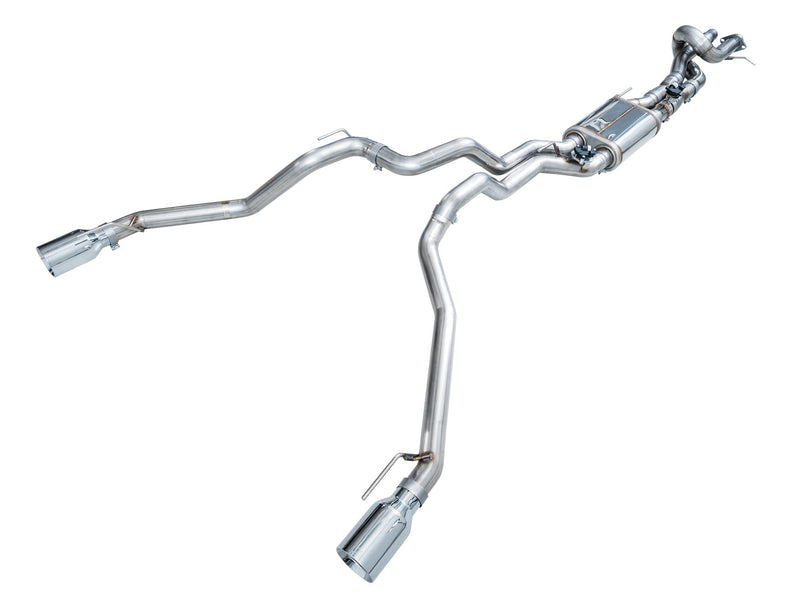

The AWE SwitchPath Exhaust is a valved dual 76mm (3") cat-back for the 3.0L twin-turbo V6 Ford Ranger Raptor. An equal-length looped front pipe and a tailored X-pipe smooth out the V6's exhaust pulses to remove rasp and give a deeper note, then the SwitchPath muffler with an OE tier 1 valve lets you choose the sound: closed for a quiet highway cruise, open for a much louder, fuller tone. The valve keeps the factory behaviour, following the Quiet, Normal, Sport and Baja drive modes, the MyMode button and throttle position. The system is CNC mandrel-bent T304L stainless steel with 1.65mm (0.065") wall and was designed around the Raptor's departure angles for high clearance.
Video
AWE SwitchPath exhaust on the Ford Ranger Raptor – product overview
Chrome Silver and Diamond Black finish with two 127mm (5") double-walled straight-cut tips in that finish. BashGuard replaces the tips with two high-clearance outlets, each with a thick reinforced stainless rock ring that can take contact off-road.
Note: Designed for the 3.0L twin-turbo V6 Ranger Raptor (P703). An extra valve motor and simulator plate are supplied so the factory valve control keeps working without fault codes. Bolt-on, no cutting required. Installation by a professional is recommended.
Features
- Valved SwitchPath muffler – quiet when closed, loud when open
- OE tier 1 valve follows the factory drive modes, MyMode button and throttle
- Dual 76mm (3") cat-back layout
- Equal-length looped front pipe and tailored X-pipe remove V6 rasp
- High-clearance routing designed around the Raptor's departure angle
- CNC mandrel-bent T304L stainless steel, 1.65mm (0.065") wall
- Choice of dual 127mm (5") tips or dual BashGuard outlets
- Extra valve motor and simulator plate included
- Bolt-on, no cutting required
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Ford | Ranger Raptor | P703 | 2022–on | 3.0L twin-turbo V6. AWE lists 2024-on (US release); confirm fitment on 2022–2023 Australian models |
Product
- Brand
- AWE
- Valve
- OE tier 1, factory drive-mode and throttle control retained
- Tip finish
- Chrome Silver or Diamond Black (tip versions)
- Part number(s)
- 3025-32306 (Chrome Silver), 3025-33306 (Diamond Black), 3025-38306 (BashGuard)
Details
- System type
- Valved cat-back with X-pipe (SwitchPath)
- Sound
- SwitchPath – quiet with valve closed, loud with valve open
- Piping diameter
- Dual 76mm (3")
- Front pipe
- Equal-length looped
- Material
- CNC mandrel-bent T304L stainless steel, 1.65mm (0.065") wall
- Outlets
- Dual 127mm (5") double-walled straight-cut tips, or dual BashGuard with reinforced rock ring
- Included
- Extra valve motor and simulator plate
Contents
Front pipes
X-pipe
SwitchPath valved muffler
Rear pipes with tips or BashGuard outlets (to suit the variant)
Extra valve motor and simulator plate
Valve wiring, clamps and hardware
