AP Racing CP9660 6-Piston Caliper Pair Universal

AP Racing CP9660 6-Piston Caliper Pair - Universal

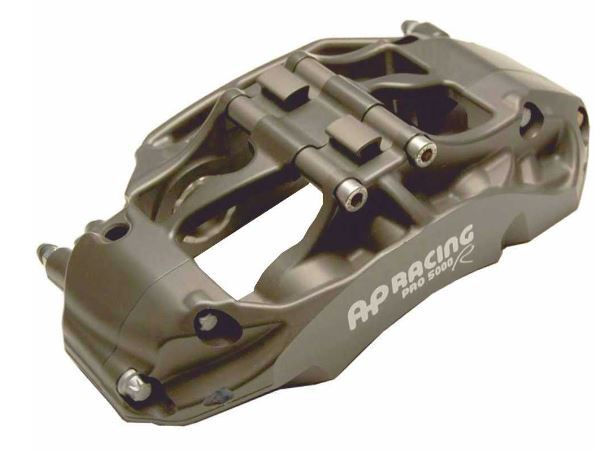

The AP Racing CP9660 is a 6-piston radial-mount race caliper from AP Racing's PRO 5000 R range, built for general competition and single-make race series. Its asymmetric, forged two-piece aluminium alloy body gives extra stiffness and consistent clamping under sustained track loads, with differential-bore stainless steel pistons (27.0, 31.8 and 38.1mm), high-temperature seals and 4 lb anti-knockback springs. Each caliper weighs 2.78 kg without pads.

This listing is a matched pair in AP Racing's anodised finish: one left-hand (CP9660-3S4L) and one right-hand (CP9660-2S4L) caliper for a complete axle. It suits discs from 356mm to 380mm diameter and 32mm to 36mm thick, on 180mm radial mounting centres with a 42mm offset, and takes the CP3905D54 pad shape (18mm thick).

Note: AP Racing sells the CP9660 as a pair only. Brackets, discs, pads and lines are sold separately. Mount the calipers within the bleed-screw angles shown on AP Racing's installation drawing: download the CP9660 installation drawing (PDF). Installation by a professional is recommended.

Features

• 6-piston, differential bore: 2 x 27.0mm, 2 x 31.8mm, 2 x 38.1mm (50.1cm² piston area)
• Forged, two-piece aluminium alloy body with asymmetric design
• Radial mount, 180mm centres, 42mm offset, 12.15mm mounting holes
• Suits discs 356–380mm diameter, 32–36mm thick
• CP3905D54 pad shape, 18mm thick, 77.4cm² pad area
• Stainless steel pistons and wear plates, high-temperature seals
• 4 lb anti-knockback springs fitted
• 2.78 kg per caliper (no pads)

Kit Contents

• 1 x AP Racing CP9660 left-hand caliper (CP9660-3S4L)
• 1 x AP Racing CP9660 right-hand caliper (CP9660-2S4L)

Need help matching discs and brackets? Contact our team at sales@chicaneaustralia.com.au.
