Alcon Calipers Rear
Street or track? We can help you pick the best Alcon kit for your car. Just Contact Us — we're happy to help.

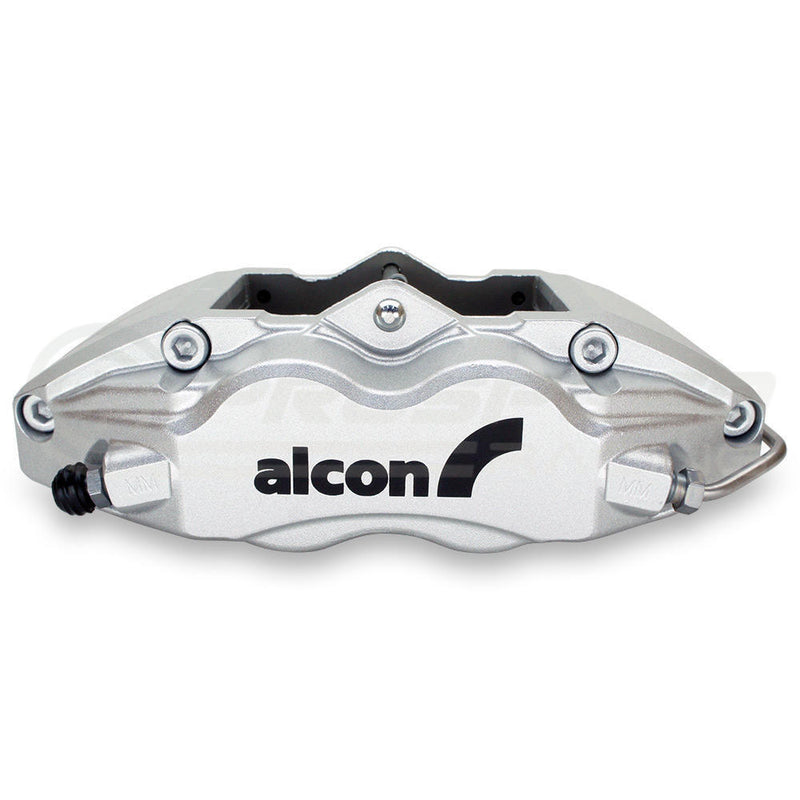

The Alcon CAR36 is a compact and efficient 4-piston rear caliper engineered for high-performance street and occasional track use. Built from billet aerospace-grade aluminium, it delivers excellent stiffness, low weight, and consistent braking performance.
Featuring equal-size 28.6mm pistons, the CAR36 offers a balanced braking response and simplified tuning. The use of stainless steel pistons improves thermal management by reducing heat transfer to the brake fluid, making it ideal for spirited driving. 2kg anti-knock back springs maintain consistent pad contact, while a bolted pad retainer ensures caliper rigidity and allows for easy pad servicing when removed.
Designed to work with 280–343mm brake discs, the CAR36 fits a wide range of performance setups and is ideal for rear axle applications in vehicles with 18” wheels and above.
Key Features:
-
Rear caliper – compact 4-piston design for performance street setups
-
Equal stainless steel pistons – 28.6mm / 28.6mm for balanced pressure
-
Dust seals included – protection for road use and long-term durability
-
Billet aluminium construction – lightweight and rigid
-
Anti-knock back springs – 2kg for consistent pedal feel
-
Bolted pad retainer – increases caliper stiffness, easily removed for quick pad changes
-
Disc compatibility: ø280 – 343mm diameter
-
Street & track-ready – reliable for daily use and occasional spirited driving
No instructions available for this product.

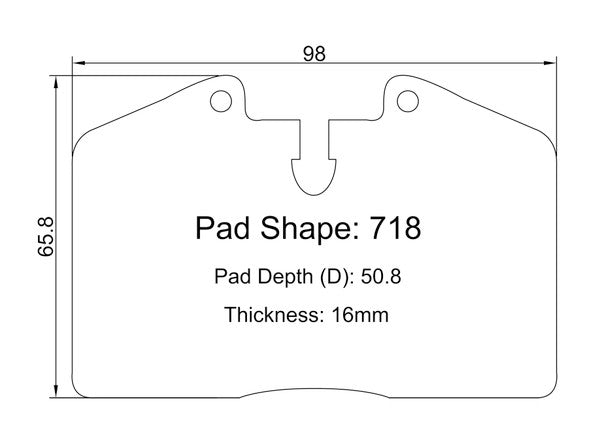

Pad Shape
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
| Overview |
 CAR97 "MONO6" Full Specs |
 CAR70 "RC6" Full Specs |
 CAR99 Full Specs |
 CAR89 "TA6+" Full Specs |
 CAR89 Motorsport Full Specs |
 CAR89 "Billet" Full Specs |
CR6420 Full Specs |
|---|---|---|---|---|---|---|---|
| Category | Performance Street | Performance Street | Premium Street | Street / Track | Dedicated Track | GT / Touring Car | GT / Touring Car |
| Construction | Monobloc Cast | 2-Piece Forged | Monobloc Billet | Forged Aero | Billet Aero | Monobloc (1-Piece) | Billet Aero |
| Piston Sizing | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.0 / 31.8 / 38.1mm |
| Overview |
 CAR69 "RC4" Full Specs |
 CAR23 Full Specs |
 CRB343 Full Specs |
 CRB332 Full Specs |
|---|---|---|---|---|
| Category | Performance Street | Dedicated Track | Dedicated Track | Dedicated Track |
| Construction | 2-Piece Forged | Billet Monobloc | Radial Mount | Radial Mount |
| Piston Sizing | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm |
| Overview |
 CAR98 "MONO4" Full Specs |
CAR69 "RC4" Full Specs |
 CAR49 "TA4+" Full Specs |
|---|---|---|---|
| Category | Performance Street | Performance Street | Street / Track |
| Construction | Monobloc Cast | 2-Piece Forged | Forged Aero |
| Piston Sizing | 31.8 / 31.8mm | 31.8 / 31.8mm | 31.8 / 31.8mm |
| Overview |
 CRR300 Full Specs |
 CRR280 Full Specs |
|---|---|---|
| Category | Dedicated Track | Dedicated Track |
| Construction | Radial Monobloc | Radial Mount |
| Piston Sizing | 28.6 or 34.9mm | 2-Piston |
Caliper Name
Your subheading
Your title
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
CAR97 "MONO6"
Designed for high-performance street cars with a firm, consistent pedal feel.
CAR70 "RC6"
A versatile 6-piston caliper built for aggressive street driving and light track use.
CAR99
The pinnacle of Alcon's street range. Billet monobloc for maximum structural rigidity.
CAR89 "TA6+"
The ultimate dual-purpose weapon. Built specifically for Time Attack and heavy track sessions.
CAR89 Motorsport
Purpose-built for professional motorsport to deliver even pressure across massive pads.
CAR89 "Billet"
1-piece billet aerospace aluminium body offers massive strength and reduced weight.
CR6420
The definitive choice for endurance GT racing, accommodating ultra-thick 25mm pads.
CAR69 "RC4"
A forged 2-piece front caliper engineered for high-performance street applications.
CAR23
An ultra-lightweight billet monobloc front caliper designed for uncompromised motorsport use.
CRB343
A pure, track-focused front radial mount caliper with differential piston diameters.
CRB332
A dedicated motorsport radial mount front caliper providing incredibly stable brake bias.
CAR98 "MONO4"
A premium 4-piston rear caliper designed to perfectly complement Alcon front upgrades.
CAR69 "RC4"
Equipped with dust seals for long-term road use, ensuring balanced rear braking power.
CAR49 "TA4+"
The definitive rear caliper for dual-purpose track and street cars.
CRR300
A sub-1kg, ultra-compact rear caliper built exclusively for motorsport.
CRR280
A highly robust rear caliper tailored for Saloon and GT racing with fast-change pad wire.
