Moroso Performance Products
Moroso Performance Products, based in Guilford, Connecticut, makes oil pans, oil pan baffles and other oiling and engine parts for racing and performance cars. Its baffles keep oil around the pickup under hard cornering, braking and acceleration, so the engine holds oil pressure. At Chicane we carry Moroso's drop-in oil pan baffle for the FA20 Toyota 86 and Subaru BRZ.
Shop by Product Type
- Oil pan baffles: Moroso Oil Pan Baffle for the Toyota 86 (ZN6) / Subaru BRZ (ZC6) FA20.
More oiling parts: Oil Pumps and Sumps. Looking for another manufacturer? Browse all brands.
Choosing the Right Part

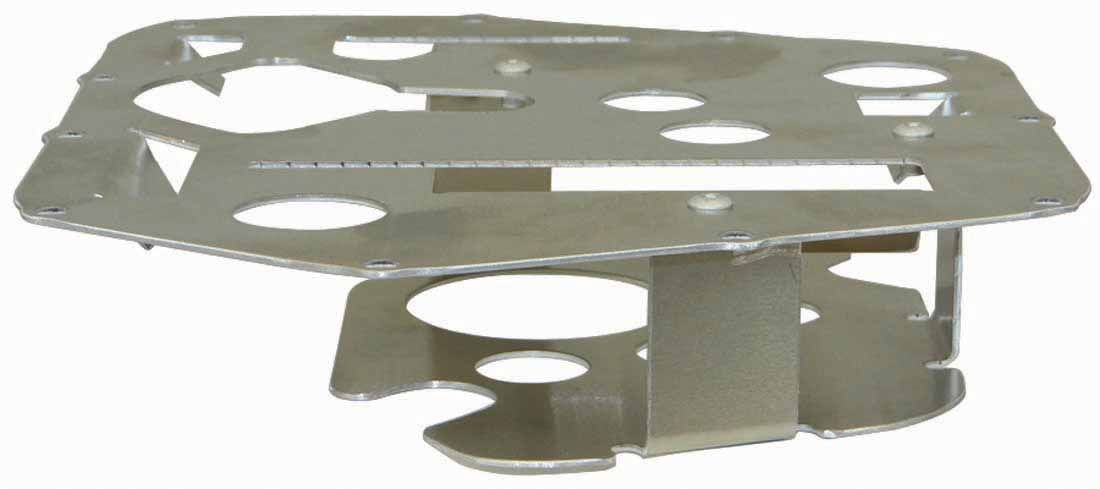

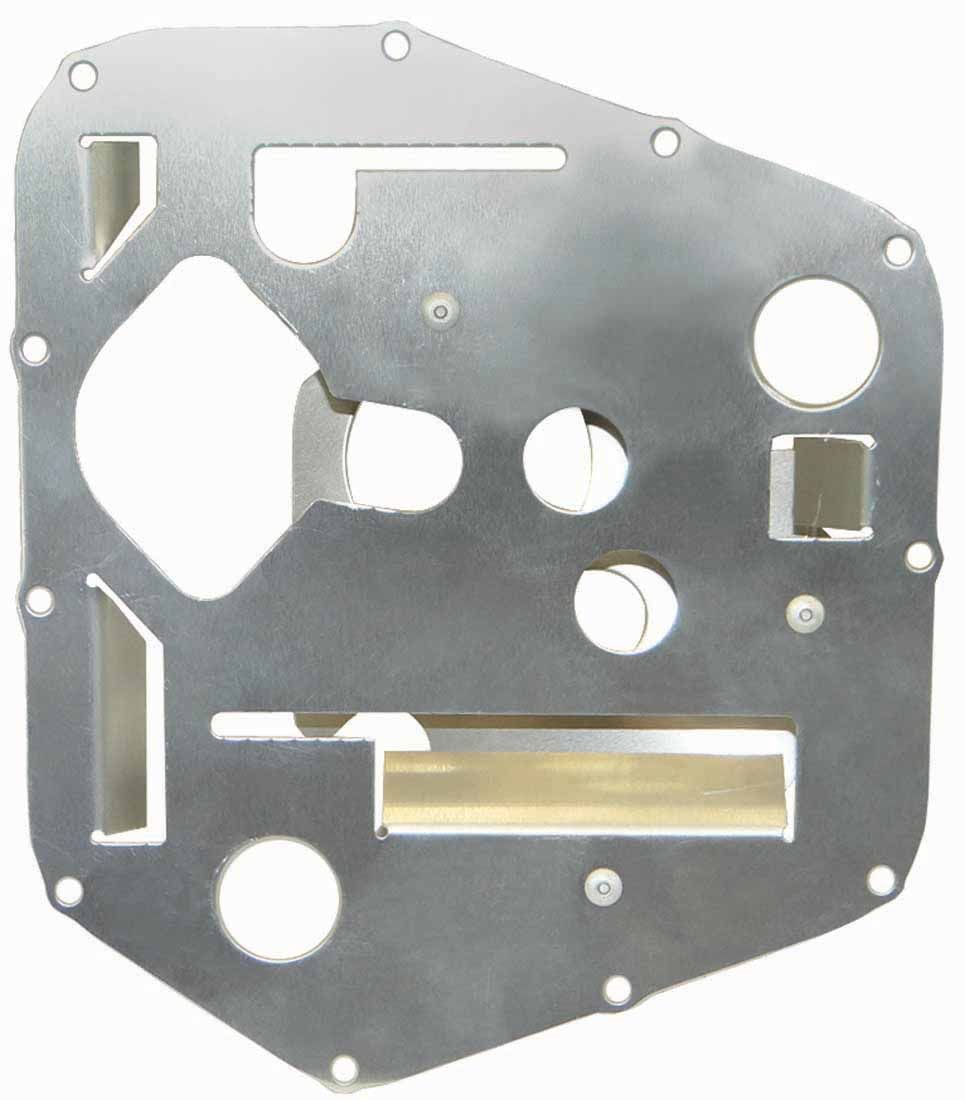

Moroso baffles are made for a specific engine and oil pan, so match the engine code, not just the model name. The 23045 baffle suits the FA20 engine in the first-generation Toyota 86 (ZN6) and Subaru BRZ (ZC6). The 2022-on GR86 (ZN8) and BRZ (ZD8) use the FA24 and need a different baffle.
Installation & What You'll Need
Fitting a baffle means draining the oil, dropping the oil pan, cleaning off the old sealant and resealing with high-temperature silicone on both sides of the baffle. Moroso's install guide is linked on the product page. Installation by a professional is recommended.
FAQ
What Moroso parts are in this collection?
The Moroso 23045 drop-in oil pan baffle for the FA20 Toyota 86 (ZN6) and Subaru BRZ (ZC6).
What does an oil pan baffle do?
It stops oil surging away from the oil pump pickup under hard cornering, braking and acceleration, so oil pressure stays steady. Moroso's design also keeps oil off the spinning crank.
Does the 23045 baffle fit the GR86 or new BRZ?
No. Moroso lists it for the FA20 Toyota 86 (ZN6) and Subaru BRZ (ZC6) only. For the FA24 GR86 (ZN8) and BRZ (ZD8), see the Tomei FA24 oil pan baffle plate.
Do I need to modify my oil pan?
No. The 23045 baffle sits between the engine block and the factory oil pan. You will need high-temperature silicone to seal both sides.
Need help choosing? Contact our team at sales@chicaneaustralia.com.au.
