Tomei Oil Pan Baffle Plate – Subaru BRZ ZD8 / Toyota 86 ZN8 (2022+)

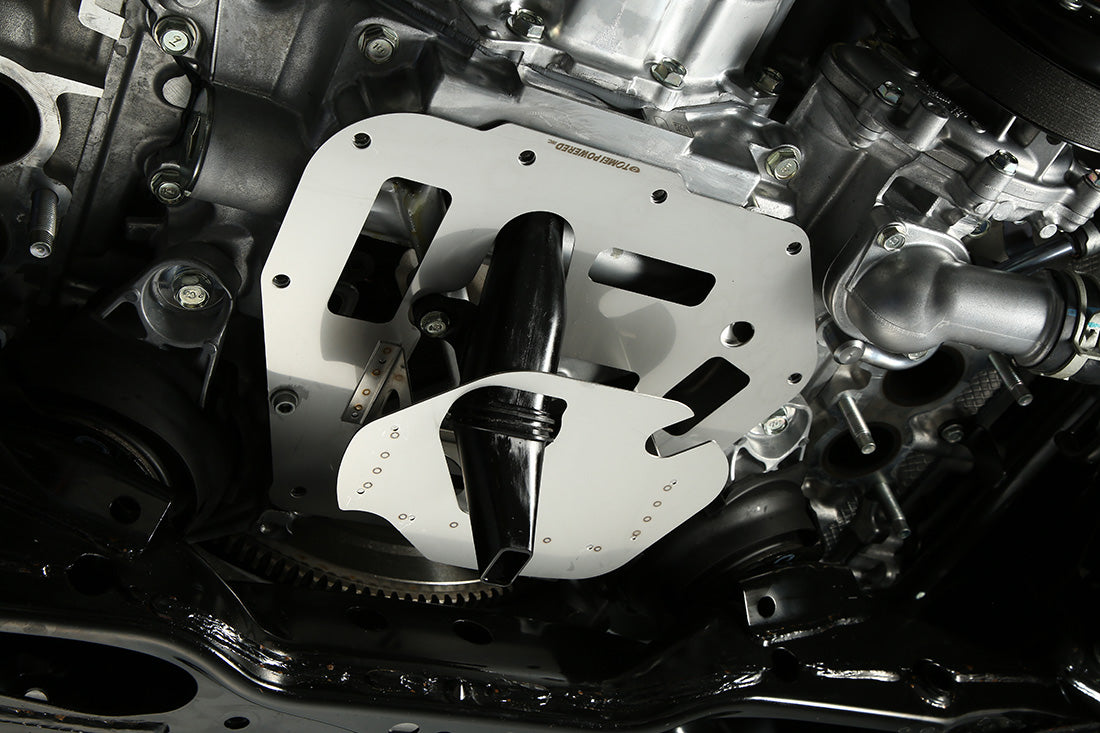

The Tomei Oil Pan Baffle Plate for the FA24 engine (Subaru BRZ ZD8 / Toyota 86 ZN8) is designed to stabilise oil supply during hard acceleration, braking, and cornering. Sudden G-force changes can cause engine oil to surge away from the pickup, risking momentary oil starvation. Tomei’s multi-plate baffle design prevents excessive oil movement and helps maintain consistent oil pressure under all driving conditions.

Key Features

• Multi-plate structure controls oil movement in all directions
• Upper plate reduces upward and sideways oil splash toward the block
• Lower plate keeps oil near the pickup to prevent cavitation
• Improves oil pressure stability during high-G driving
• Ideal for spirited driving, track use, and high-performance applications

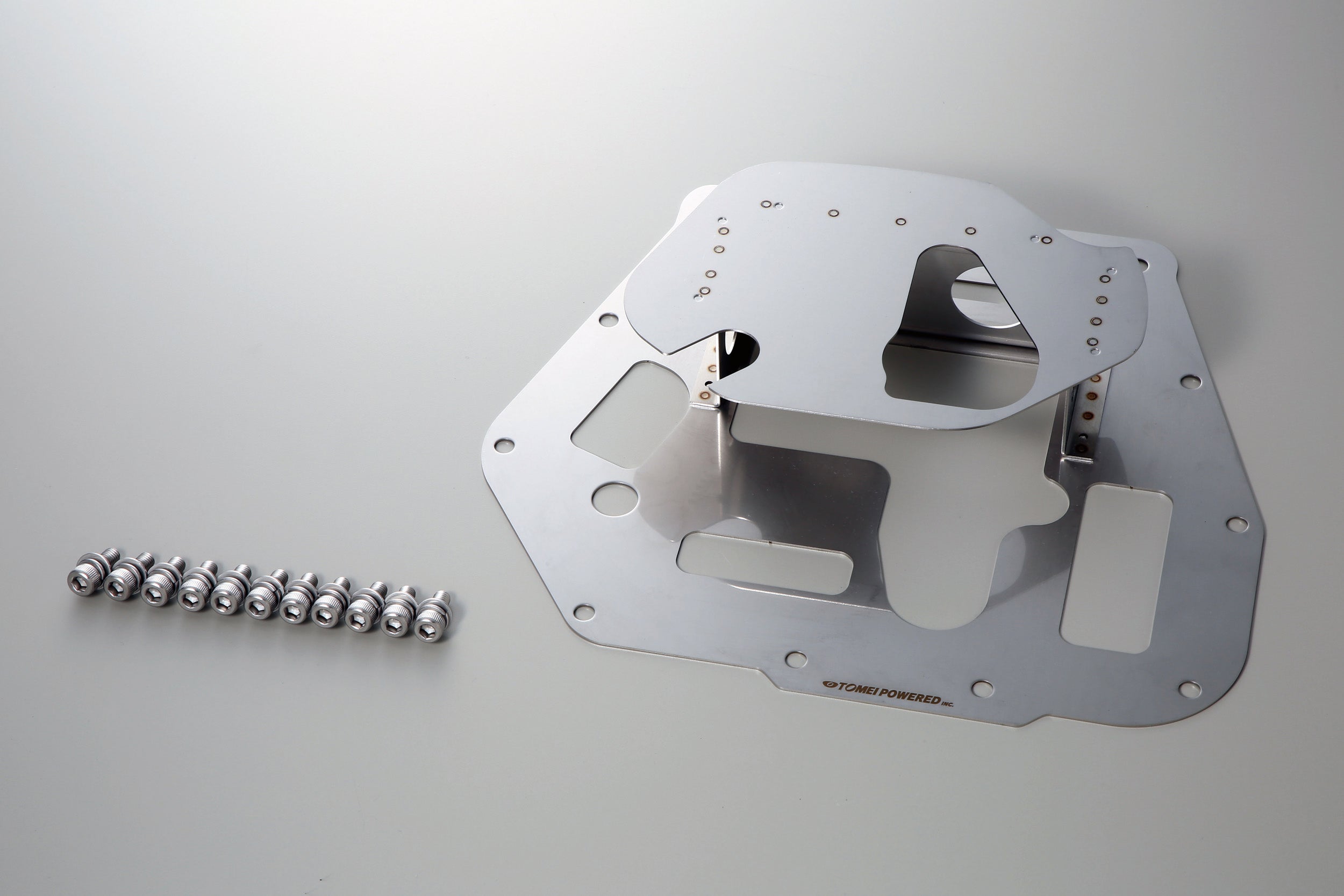

• Material: SUS304 stainless steel
• Plate thickness: 1.2 mm
• Weight: 580 g
• Includes all required bolts

How It Works

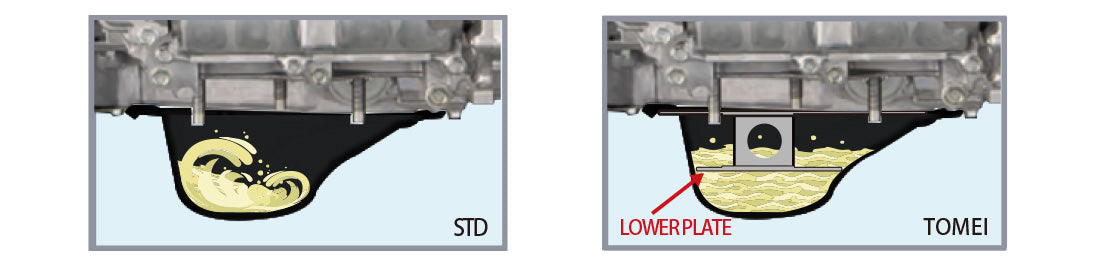

• STD (without baffle): Oil surges toward the block and away from the pickup, causing pressure drops.
• Tomei baffle fitted: Upper plate blocks upward splash; lower plate keeps oil centred at the pickup for stable lubrication.

Vehicle Compatibility

• Subaru BRZ ZD8 (FA24)
• Toyota 86 ZN8 (FA24)
• GR86 (FA24)

Part Number: 194017
