Radium Engineering Top Feed Conversion Fuel Rails - Subaru WRX / STI (EJ20 V3-V6)
Radium Engineering's 20-0569-02 fuel rails convert early Subaru EJ20 turbo engines with OEM side-feed intake manifolds to universal top-feed injectors. They are designed for the Version 3–6 JDM models and open up far more injector choices while simplifying the plumbing.
Each rail has three 8AN ORB ports (six in total), press-fit spacers thermally insulate the rails from intake manifold heat, and adaptable mounting brackets are included to suit a wide range of Subaru vehicles. The rails are compatible with all fuel types including E85.
Note: Do not use "WRX fitment" injectors. Compatible injectors must have a 48mm body length with 14mm upper and lower O-rings – verified options are Injector Dynamics ID1050, ID1300, ID1700 and ID2600 (XDS-48-14-14). Injectors and fittings are not included. Match your intake manifold to the correct Radium rail part number before ordering. Installation by a professional is recommended.
Features
- Converts side feed to top feed injectors
- Three 8AN ORB ports per rail (6 total)
- Press-fit thermal insulating spacers
- Adaptable mounting brackets for a wide range of Subaru models
- Suits 48mm injectors with 14mm upper and lower O-rings
- E85 compatible
Pairs Well With
- Radium Engineering Fuel Rail Plumbing Kit (Parallel) - Subaru WRX / STI (EJ20 / EJ25)
- Radium Engineering Fuel Rail Plumbing Kit (Series) - Subaru WRX / STI (EJ20 / EJ25)
- Radium Engineering Fuel Pump Hanger - Subaru WRX / STI (GC / GD)
- Radium Engineering Intake Manifold Gasket - Subaru WRX / STI (EJ20 / EJ25)
- Radium Engineering MPR Multi-Port Regulator - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Subaru | Impreza WRX | GC | 1997–2000 | EJ20 turbo, V3–V6 (JDM/EDM) |
| Subaru | Impreza WRX STI | GC | 1997–2000 | EJ20 turbo, V3–V6 (JDM) |
| Subaru | Forester | SF | 1998–2001 | EJ20G (JDM) |
| Subaru | Legacy GT | - | 1992–2000 | EJ20G (JDM) |
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-0569-02
Details
- Product
- Top feed conversion fuel rails (pair)
- Ports
- 3 × 8AN ORB per rail (6 total)
- Heat isolation
- Press-fit thermal insulating spacers
- Mounting
- Adaptable brackets included
- Injector requirement
- 48mm body, 14mm upper and lower O-rings; not WRX-fitment injectors
- Verified injectors
- Injector Dynamics ID1050/ID1300/ID1700/ID2600-XDS-48-14-14
- Fuel compatibility
- All fuels including E85

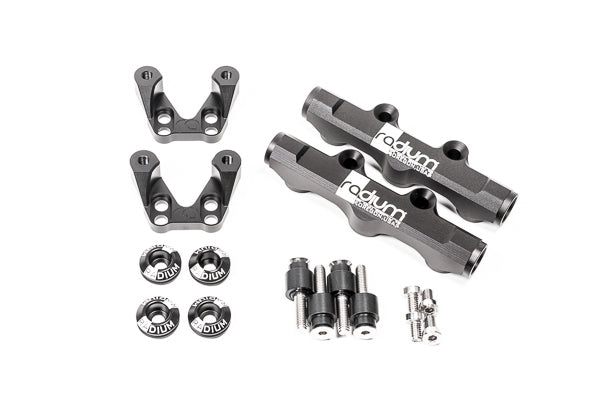

Contents
Black anodised, laser-etched aluminium fuel rails (x2)
Black anodised V3–V6 conversion mounting brackets (x2)
Black anodised and laser-etched 26mm injector seats (x4)
Thermal insulating press-in spacers (x4)
Stainless steel M8x1.25 mounting bolts (x4)
