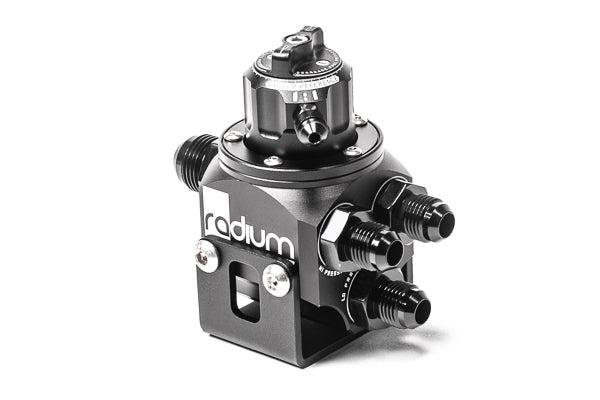

Radium Engineering MPR Multi-Port Regulator - Universal
The Radium Engineering Multi-Port Regulator (MPR) is a flexible fuel pressure regulator for both simple and complex EFI fuel systems. Its port layout lets it combine two pumps into a single feed, split a feed between two fuel rails, or run a single-pump setup, in flow-through, deadhead or hybrid configurations.

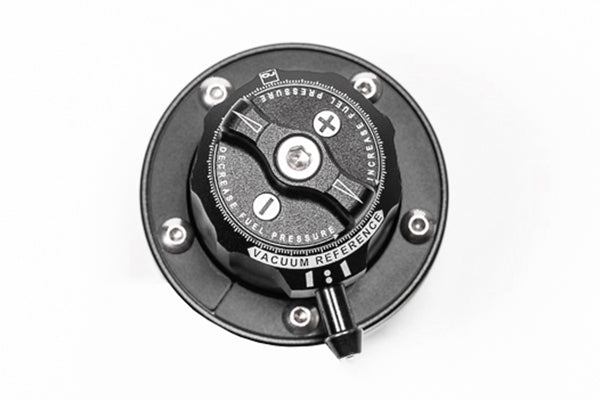

Like all RA-Series regulators it offers tool-less pressure adjustment: turn the knob and haptic detents give roughly 1 psi per click. A laminar-flow return orifice gives stable pressure, integrated dual return ports line up with the pressure ports so no elbows are needed, and the double O-ring sealed vacuum reference port swivels 360 degrees and accepts four interchangeable fittings. Choose black (20-1100-00) or green (20-1100-01).
Note: Minimum fuel pressure is 18.5 psi (1.3 bar); maximum pressure depends on your fuel pump system. A rapid drop in fuel pressure after shut-off is normal for high-flow aftermarket regulators and resets as soon as the pump runs. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering Diaphragm Service Replacement FPR - Universal - MPR/FST-R/DMR
- Radium Engineering FPR Spring - Universal - Wide Range
- Radium Engineering Replacement Stainless Steel FPR Orifice - Universal - Fuel Pressure Regulator
- Radium Engineering Fuel Pressure Gauge - Universal - 0-100psi (0-6.9 BAR)
- Radium Engineering Fuel Filter with Check Valve - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-1100-00, 20-1100-01
- Black – Part number
- 20-1100-00
- Green – Part number
- 20-1100-01
Details
- Product
- MPR multi-port fuel pressure regulator (RA-Series)
- Pressure adjustment
- Tool-less knob, approx. 1 psi per detent
- Minimum pressure
- 18.5 psi (1.3 bar)
- Maximum pressure
- Dependent on fuel pump system
- Vacuum reference
- 1:1, 360° swivel port, 4 fittings included
- Configurations
- Flow-through, deadhead, hybrid
- Mounting
- Included bracket or M6 through-body holes
- Fuel compatibility
- Petrol, E85, methanol, oxygenated fuels

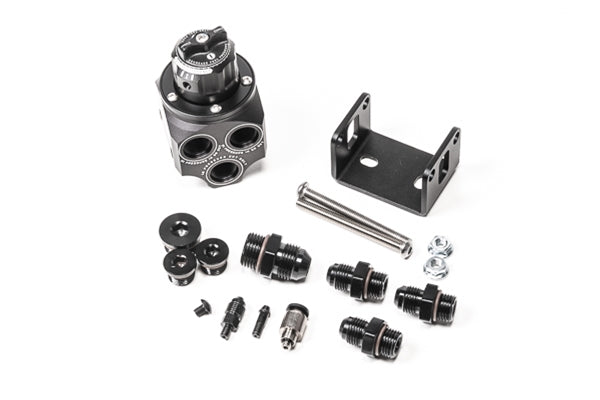

Contents
- Regulator assembly (black or green)
- Mounting bracket with stainless hardware

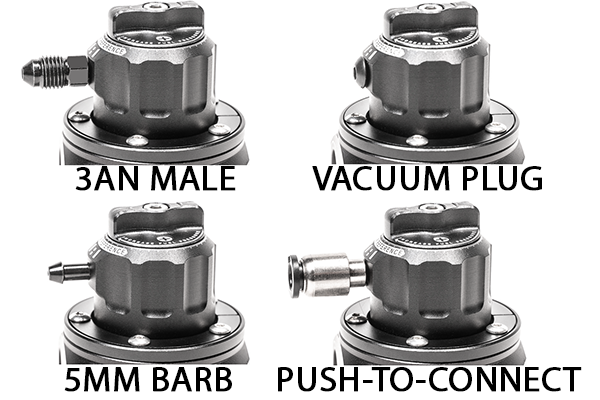

- 4 x vacuum reference fittings (3/16in barb, 3AN male, 1/4in push-to-connect, vacuum plug)
- 2 x 6AN ORB plug
- 1 x 8AN ORB plug
- 3 x 6AN ORB to 6AN male adapter
- 1 x 8AN ORB to 8AN male adapter
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
