Radium Engineering Spare Tire Fuel Cell Mounting Kit - Universal
This Radium Engineering bracket kit is a simple, secure way to mount a fuel cell in a vehicle's spare tyre well. It is designed for the Radium RA-Series Spare Tire Fuel Cell and other similarly sized cells.

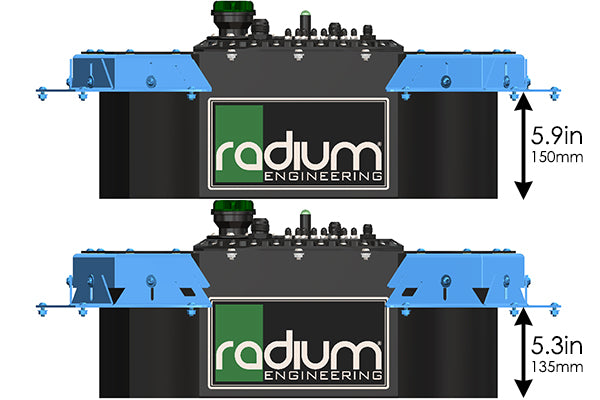

Because spare tyre wells vary from vehicle to vehicle, slotted holes give up to 15mm (0.6in) of height adjustment. Two sets of rivet nuts come pre-installed in the powder-coated aluminium brackets – one for quick fuel cell removal and one for height adjustment – and adhesive foam and all hardware are included.
Note: Review the product dimensions and measure your spare tyre well to confirm fitment before ordering. The fuel cell is sold separately. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering RA-Series Fuel Cell (FIA-FT3 Certified) - Universal
- Radium Engineering Fuel Cell Vent Kit (Roll-Over Protection) - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Universal | Spare tyre wells suiting the Radium RA-Series spare tyre fuel cell or similar cells | - | - | Up to 15mm height adjustment; measure the well first |
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-0931
Details
- Product
- Spare tyre fuel cell mounting kit
- Suits
- Radium RA-Series Spare Tire Fuel Cell and similarly sized cells
- Bracket material
- Powder-coated aluminium
- Height adjustment
- Up to 15mm (0.6in) via slotted holes
- Hardware
- 1/4"-20 stainless bolts, flange nuts, pre-installed rivet nuts
- Also included
- Mounting adhesive foam

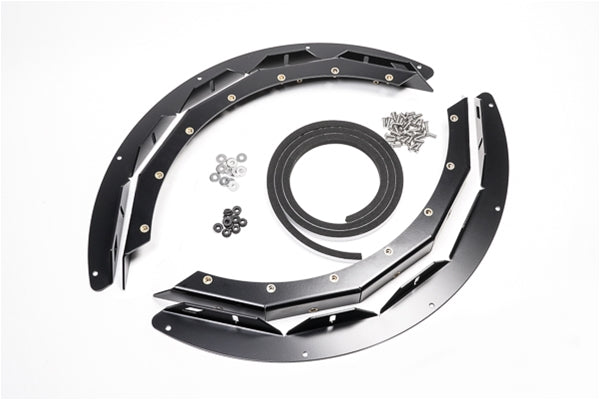

Contents
- Powder-coated aluminium mounting brackets
- Stainless steel 1/4"-20 bolts
- Black zinc-plated 1/4"-20 flange nuts
- Zinc-plated 1/4"-20 rivet nuts (pre-installed)
- Mounting adhesive foam
