Radium Engineering Remote Mount Vented Filler (1.5in Elbow) - Universal
The Radium Engineering 20-1104-V Remote Mount Vented Female Dry Break is designed to mount on an external body panel such as a guard, giving a fuel cell or surge tank quick, mess-free dry break refuelling. When the male probe on a dump can meshes with this 1.5in female receiver, both valve seals open and close in synchronised timing so no fuel leaks.

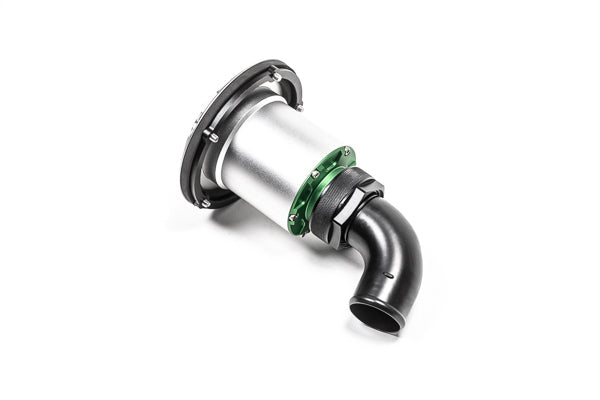

A 75° 24AN elbow on the machined housing rotates to point in any direction for clean filler hose routing, and the vented cap has roll-over protection in case the vehicle is ever inverted. It mounts with five M5 bolts on a 4.25in bolt circle, and a 1-7/8in aluminium AN spanner is included for correct B-nut tightening.
Note: Requires a 77mm (3.03in) hole to be cut in the mounting panel. Suits the Radium 20-0496 dump can probe and other dry breaks of the same size; pair it with the Radium 20-0535 DSV valve so vent flow shuts off automatically when full. No fuel tank connection accessories are included. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering Dry Break Dust Cap - Universal
- Radium Engineering Fuel Cell Filler Hose (1.5in) - Universal
- Radium Engineering Quick Fill Dump Can - Universal - 22.7L (6 Gal) 1.5" Dry Break
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Universal | Fuel cells and surge tanks with a remote body-mounted filler | - | - | Needs a 77mm hole in the panel; mates with 1.5 in male dry breaks |
Product
- Brand
- Radium Engineering
- Dry break size
- 1.5in
- Part number(s)
- 20-1104-V
Details
- Product
- Remote mount vented female dry break filler, elbow
- Filler hose ID
- 1.5in
- Hose end
- 24AN, 75° elbow (rotatable)
- Flange OD
- 4.75in
- Bolt circle
- 4.25in, 5 × M5 bolts
- Mounting hole
- 77mm (3.03in)
- Cap
- Vented with roll-over protection
- Fuel compatibility
- Petrol (leaded/unleaded), diesel, AV gas, methanol, ethanol, E15, E85
- Compatible probe
- Radium 20-0496 dump can and same-size dry breaks

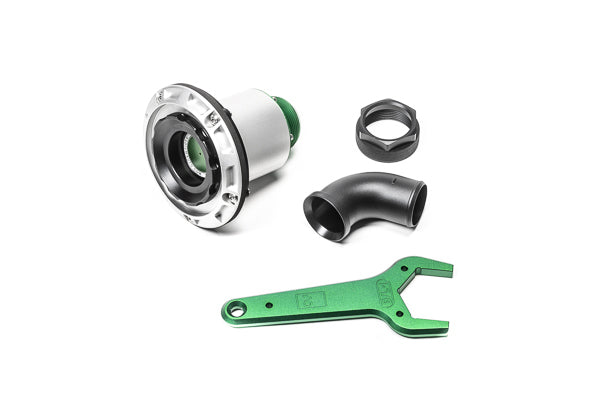

Contents
- 1.5in vented female dry break receiver
- 75° 24AN elbow hose end
- Aluminium housing and nut ring
- Gasket
- Stainless steel hardware
- 1-7/8in aluminium AN spanner
