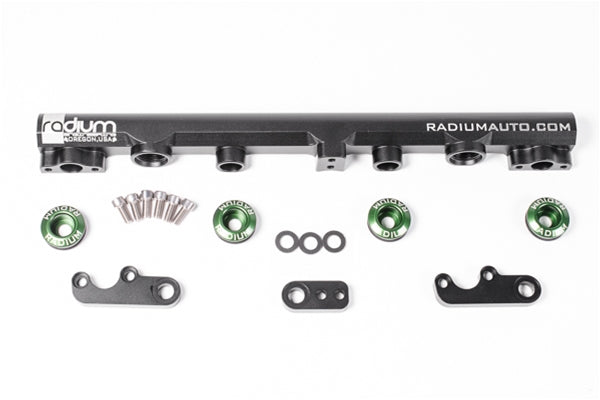

Radium Engineering Top Feed Fuel Rail Conversion – Nissan SR20VE

This Radium Engineering fuel rail is a direct bolt-on upgrade for Nissan SR20VE engines originally found in select JDM Bluebird, Wingroad, and Primera models. The rail converts the factory side feed fuel injector setup to a top feed configuration, allowing the use of high-flow 14mm O-ring injectors (not included).

Manufactured with a large 17.5mm (0.69") internal bore, the fuel rail is capable of supporting high horsepower applications and is fully compatible with alternative fuels, including E85. The rail is extruded and CNC machined from 6063 aluminium, then black anodised for corrosion resistance and a premium finish.

With the OEM insulating spacers and Radium's included thermal washers, the fuel rail is completely isolated from intake manifold heat, promoting cooler fuel temperatures and optimal performance.

Features:

• Converts side feed to top feed injectors (14mm O-ring)

• Supports high horsepower and E85-compatible setups

• CNC machined 6063 aluminium, black anodised

• Integrated thermal isolation to minimise heat soak

• Compatible with standard Injector Dynamics top feed injectors

Fuel Injector Compatibility:
Direct fitment with the following Injector Dynamics part numbers:

• ID1050-XDS-34-14-14

• ID1300-XDS-34-14-14

• ID1700-XDS-34-14-14

• ID2600-XDS-34-14-14

Note: Fuel injectors are not included and must be purchased separately. Fittings can be purchased separately using the options above.

Compatibility:

• JDM 97–00 Nissan U14 Bluebird SSS-Z

• JDM 97–00 Nissan U14 Wingroad ZV-S

• JDM 97–00 Nissan P11 Primera Te-V

• JDM 97–00 Nissan P11 Primera G-V
