Radium Engineering Remote Mount Vented Standard Filler
Not sure which option fits your application? Contact Us - we're happy to help.
Radium Engineering Remote Mount Vented Standard Filler - Universal - 1.5" Elbow
The Radium Engineering vented standard filler (SKU 20-1105-V) is a remote-mount filler for fuel cells and tanks where the factory filler can no longer be used. Its threaded, vented cap has built-in roll-over protection to keep fuel contained if the vehicle is inverted.
The 1.5" elbow attaches at 75° and can be clocked to point in any direction, or removed so a 24AN filler hose can be connected to the flanged neck. The kit includes the hardware needed to hook it up.
Note: Installation by a professional is recommended.
Pairs Well With
- Radium Engineering Fuel Cell Filler Hose (1.5in) - Universal
- Radium Engineering Remote Mount Vented Fuel Cap - Universal
- Radium Engineering FCST-X 3-Bolt Remote Fill Neck (24AN to 1.5in Barb) - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-1105-V
Details
- Filler type
- Standard threaded cap, vented with roll-over protection
- Outlet
- 1.5" elbow, 75°, rotatable
- Neck connection
- Flanged for 24AN
- Hardware
- Stainless steel M5 bolts, anodised aluminium nut ring

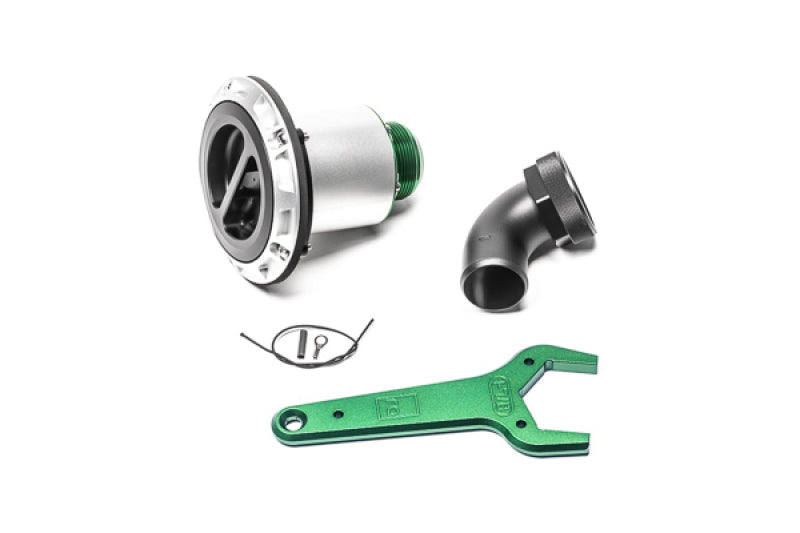

Contents
- Vented cap with roll-over protection
- Flanged fill neck for 24AN connection
- 24AN B-nut
- 24AN elbow
- 24AN wrench
- Ozone/flame-resistant gasket
- Anodised aluminium nut ring
- Stainless steel M5 bolts
- Tether components
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
