Radium Engineering Fuel Rail Plumbing Kit – Nissan R35 GT-R

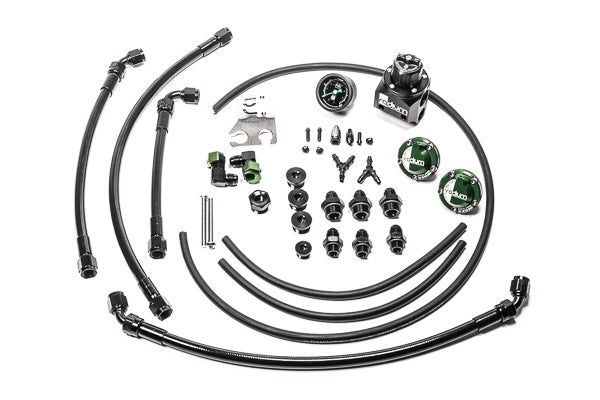

The Radium Engineering Fuel Rail Plumbing Kit for the Nissan R35 GT-R is designed for a plug-and-play installation when paired with the 20-0556-02 fuel rails. This kit provides all necessary components to easily connect the OEM hard fuel lines to the Radium Fuel Pressure Regulator (FPR), ensuring smooth fuel delivery to the rear fuel rail ports. The kit includes low-profile 90-degree SAE adapters, PTFE fuel hoses, and a stainless steel mount for the Radium FPR. Additionally, it comes with two Radium fuel pulse dampers and a pressure gauge for accurate fuel system monitoring.

Features:

• Bolt-on, plug-and-play solution when used with 20-0556-02 fuel rails

• Stainless steel mount for the Radium FPR

• Low profile 90-degree SAE adapters for PTFE fuel hoses

• PTFE fuel lines from the FPR to the rear fuel rail ports

• Includes two Radium fuel pulse dampers and pressure gauge

• RA-series regulator features tool-less pressure adjustment with incremental detents

• 360-degree swiveling vacuum reference port for easy installation

RA-Series Regulator Features:

• Tool-less pressure adjustment with a simple turn of the knob

• Incremental detents provide haptic feedback for 1psi (+/- 0.5psi) adjustment

• 360-degree swiveling vacuum reference port with double O-ring seal

• Four interchangeable 10-32 threaded vacuum port fittings provided for all scenarios

Vacuum Port Fitting Options:

1. Barbed Fitting: Black zinc-plated 3/16" (5mm) barb compatible with 5/32" (4mm), 3/16" (5mm), and 7/32" (6mm) vacuum hoses.

2. 3AN Male Fitting: Black zinc-plated adapter compatible with 3AN hose ends.

3. Push-To-Connect: Nickel-plated brass fitting compatible with hard plastic 1/4" OD tubing.

4. Vacuum Plug: Black oxide stainless steel screw to maintain constant (non-dynamic) fuel pressure.

Fuel Compatibility:
This kit is suitable for all types of gasoline, including unleaded, leaded, oxygenated, and pre-mixed fuels. It is also compatible with alcohol fuel blends, including methanol, ethanol, and E85.
