Radium Engineering Fuel Hanger Plumbing Kit - Chevrolet Corvette (C5/C6) - 2003-2008 Manual
This Radium Engineering plumbing kit supplies everything needed to connect the Radium Corvette fuel hanger to the engine, including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings and mounting hardware. 8AN PTFE hose runs from the hanger outlet to a chassis-mounted filter near the tank, then through the tunnel alongside the torque tube to the regulator, secured with stainless steel cushioned clamps and protected from the exhaust by the included thermal insulation.
This listing covers the mid 2003-2008 Chevrolet Corvette with a manual gearbox. The regulator mounts on a billet aluminium bracket near the brake master cylinder and connects to the OEM fuel rail through the stock feed line via an SAE quick connect adapter, while the OEM hard feed line is repurposed as the return. Choose a 10-micron stainless element (SKU 20-0981-03) or a 6-micron microglass element (SKU 20-0981-05) from the variant selector.
Note: Not compatible with automatic transmissions, as the bell housing interferes with the filter mounting position. The regulator bracket is specific to mid 2003-2008 cars because the brake master cylinder changed between 2008 and 2009. If aftermarket fuel rails are fitted, Radium recommends feeding each front rail port independently and plugging the rear ports; parts for this are not included. Designed for use with the Radium Corvette fuel hanger (20-0980, sold separately). Designed around the US-market vehicle; please confirm fitment on Australian-delivered vehicles with our team before ordering. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering Fuel Pump Hanger - Chevrolet Corvette (C5/C6) - Pumps Not Included
- Radium Engineering FPR Bypass - Chevrolet Corvette (C5/C6)
- Radium Engineering Dual Pump Add-On - Chevrolet Corvette (C5/C6/C7)
- Radium Engineering Fuel Rail Set - GM LS-Series (LS1 / LS2 / LS3 / LS6)
- Radium Engineering Replacement Fuel Filter Element - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-0981-03, 20-0981-05
- Stainless – Part number
- 20-0981-03
- Microglass – Part number
- 20-0981-05
Details
- Feed Hose
- 8AN PTFE
- Rail Connection
- SAE quick connect adapter to OEM feed line
- Transmission
- Manual only
- Gauge
- Fuel pressure gauge included
- Filter Element
- 10-micron stainless or 6-micron microglass (per variant)

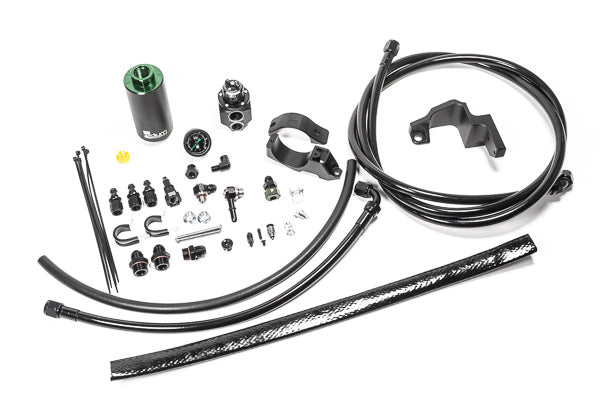

Contents
- External fuel filter (stainless or microglass per variant) with chassis mount
- Fuel pressure regulator with billet aluminium mount
- Fuel pressure gauge and adapter fittings
- 8AN PTFE fuel hoses
- Stainless steel cushioned clamps
- Thermal insulation
- SAE quick connect adapter
- Return line adapter fittings and hose
- Mounting hardware
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
