Radium Engineering Fuel Hanger Plumbing Kit - Mazda MX-5 (NA / NB)
This Radium Engineering fuel hanger plumbing kit replaces the factory fuel delivery plumbing on the NA and NB Mazda MX-5 with a full -8AN feed and return system. It includes PTFE fuel lines, a Radium RA-series fuel pressure regulator with gauge and a high-flow fuel filter, and is fully E85 compatible.
The factory feed line is repurposed as the return to remove restrictions while keeping factory routing where possible, and the filter mounts in the OEM location on a billet bracket. Use the variant selector to choose the filter element: 10-micron stainless (SKU 20-1025-03) or 6-micron microglass (SKU 20-1025-05).
Note: Designed to connect a Radium MX-5 fuel hanger to an aftermarket fuel rail such as the Radium 1.6L B6 or 1.8L BP rail (sold separately). Installation by a professional is recommended.
Features
- Converts to a full -8AN feed and return setup
- PTFE fuel lines compatible with all fuel types including E85
- RA-series fuel pressure regulator with gauge
- High-flow fuel filter – 10-micron stainless or 6-micron microglass element
- Billet bracket mounts the filter in the OEM location
- Bolt-on installation with no modifications required
Pairs Well With
- Radium Engineering Fuel Hanger (Pumps Not Included) - Mazda MX-5 (NA / NB)
- Radium Engineering Fuel Pump Access Covers - Transparent
- Radium Engineering Fuel Rail - Mazda 1.8L (BP)
- Radium Engineering Fuel Rail Plumbing Kit - Mazda MX-5 (NB)
- Radium Engineering Replacement Fuel Filter Element - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Line size
- -8AN feed and return
- Part number(s)
- 20-1025-03, 20-1025-05
- Stainless Filter (10 Micron) – Part number
- 20-1025-03
- Microglass Filter (6 Micron) – Part number
- 20-1025-05
Details
- Hose
- PTFE
- Regulator
- Radium RA-series with gauge
- Filter element
- 10-micron stainless or 6-micron microglass
- Fuel compatibility
- All fuel types including E85

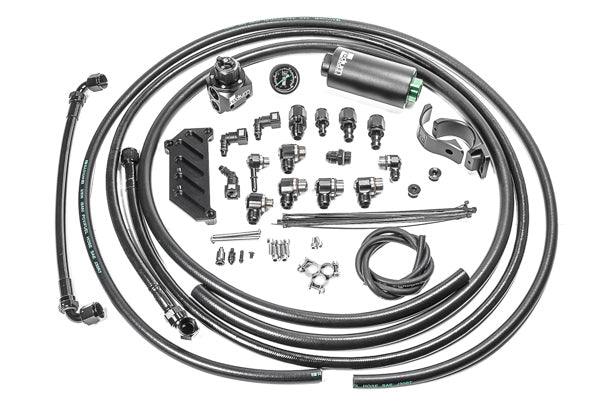

Contents
8AN PTFE Fuel Feed Line
8AN PTFE Fuel Return Line
RA-Series Adjustable Fuel Pressure Regulator
High Flow Fuel Filter (Select -03 or -05)
Fuel Pressure Gauge
Billet Filter Mounting Bracket
Adapter Fittings
Stainless Steel Hardware
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
