Radium Engineering Fluid Lock Dual Catch Can Kit (CCV) Nissan GT-R (R35)

Radium Engineering Fluid Lock Dual Catch Can Kit (CCV) - Nissan GT-R (R35)

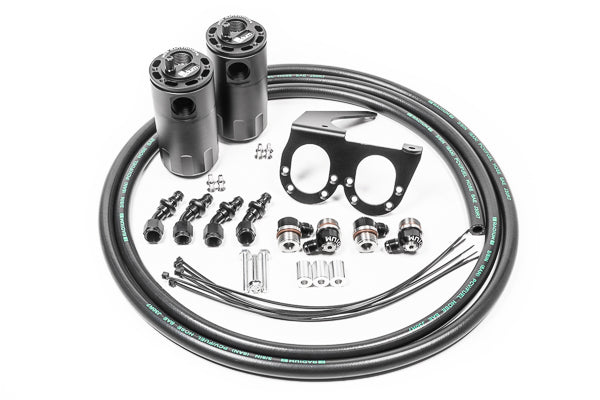

The Radium Engineering Fluid Lock Dual CCV Catch Can Kit (SKU 20-0555-FL) protects the intake system of the Nissan GT-R (R35). Two catch cans, one per cylinder head breather, run inline between each crankcase vent port and its turbo inlet while keeping full factory function.

Video

Radium Engineering Catch Cans for the Nissan R35 GT-R

Under boost the PCV valve closes and all blow-by leaves through the head breathers; without catch cans this oil and sludge builds up in the intake pipes and intercooler, reducing its thermal efficiency. Each sealed, closed-loop Fluid Lock can has 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling and an O-ring sealed dipstick, and the kit mounts at the front of the engine using factory holes.

Note: This kit does not cover the PCV side of the crankcase; Radium recommends running it with the R35 PCV Catch Can Kit (20-0565-FL). No extra inline check valve is required as the cans are pressure sealed. Suits RHD and LHD vehicles. Installation by a professional is recommended.

Features

• Two Fluid Lock catch cans – one per cylinder head breather
• Runs inline between CCV ports and turbo inlets
• Sealed closed-loop design – no vent to atmosphere
• 10AN ORB ports and 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipsticks
• Mounts using factory holes – no cutting or drilling
• Suits RHD and LHD vehicles

Pairs Well With

• Radium Engineering Fluid Lock Catch Can Kit (PCV) - Nissan GT-R (R35)
• Radium Engineering Catch Can O-Ring Service Kit - Universal
• Radium Engineering Catch Can Petcock Drain Kit - Universal - 4AN ORB
• Radium Engineering Coolant Tank Kit - Nissan GT-R (R35)
• Radium Engineering Fuel Rail Plumbing Kit - Nissan GT-R (R35)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
