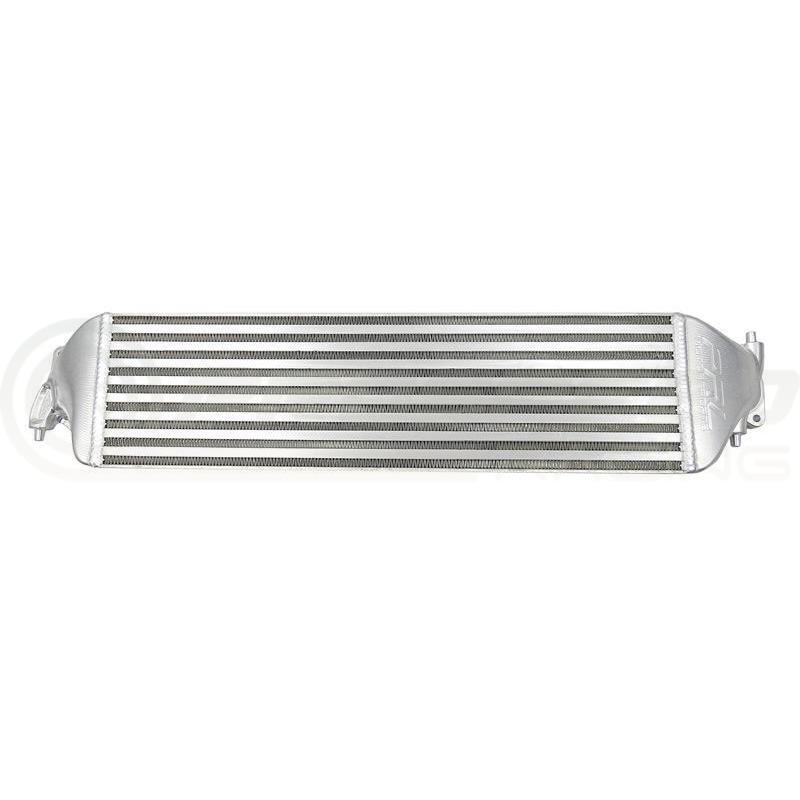

PRL Motorsports Intercooler Upgrade Raw - Honda Civic Type R (FK8)
Honda's 2.0 litre turbo engine in the Civic Type R is known for heat soak once you start pushing it hard, and the factory intercooler struggles to keep charge temperatures in check. PRL Motorsports built this raw finish intercooler upgrade (SKU PRL-HCR-IC) to tackle that problem directly, using a larger bar-and-plate core and billet aluminium end tanks to move more air and shed heat faster.
This listing covers the Honda Civic Type R (FK8). The kit bolts straight into the factory mounting locations and reuses the OEM air ducts and shrouds, so there's no cutting, trimming, or fitting involved. All hardware required for installation is included.
Key Features
- Bar-and-plate core rated to 550+ hp, increasing surface area by 85% and internal flow by 83%
- Billet machined aluminium end tanks for improved efficiency and airflow
- Reported post charge air temperature drops of up to 27.8°C (50°F) at peak, averaging 17.8°C (32°F)
- Improves turbo spool and mid range power delivery
- No tune required
- Retains factory intercooler bolts and hardware
- Intercooler to charge pipe bolt torque spec: 24.4 Nm (18 ft-lb)
Kit Contents
- 1 x Intercooler assembly
- 1 x Cardboard stencil with PRL logo (for optional custom paint finish)
- 2 x Buna O-rings
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your Civic Type R's model year and configuration before ordering.
Not sure if this intercooler suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Honda | Civic Type R | FK8 | K20C1 |
Technical Specifications
| Spec | Value |
|---|---|
| Core Type | Bar-and-plate |
| Core Dimensions | 673 x 89 x 184 mm (26.5 x 3.5 x 7.25 in) |
| Core Power Rating | 550+ hp rated |
| End Tank Material | Billet machined aluminium |
| Core Surface Area Increase | 85% (vs factory) |
| Core Internal Flow Increase | 83% (vs factory) |
| Charge Air Temp Reduction (Peak) | 27.8°C+ drop (50°F+) |
| Charge Air Temp Reduction (Average) | 17.8°C drop (32°F average) |
| Rated Power Gain | 3 hp (bolt-on) |
| Rated Torque Gain | 14.9 Nm (11 ft-lb) |
| Intercooler-to-Charge Pipe Bolt Torque Spec | 24.4 Nm (18 ft-lb) |
| Tune Required | No |
| Retains Factory Hardware/Mounting | Yes — uses factory intercooler bolts, mounting points, and air ducts/shrouds |
| Included Components | 1x Intercooler assembly, 1x Cardboard stencil (PRL logo), 2x Buna O-rings |
No instructions available for this product.
