PRL Motorsports High Volume Intake System Honda Civic Type R (FK8)

PRL Motorsports High Volume Intake System - Honda Civic Type R (FK8)

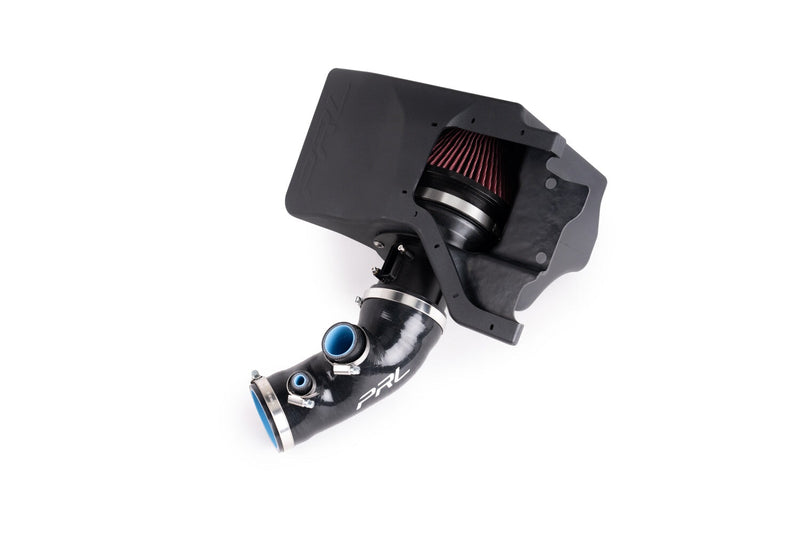

PRL's High Volume Intake System replaces the FK8 Civic Type R's factory airbox with a 152mm (6") cone filter in a rotomoulded HDPE airbox that uses the factory air duct and seal to limit heat soak. A two-piece MAF housing with velocity stacks keeps fuel trims close to factory for good drivability. On a stock-equivalent tune, PRL's dyno testing showed about 8–9 kW (11–12 hp) more at peak and up to 24 kW (32 hp) more through the mid-range than the factory intake.

Video

PRL Motorsports shows its High Volume Intake System on the FK8 Civic Type R.

Two MAF housing options are available. The Standard Bore housing needs no ECU calibration. The Big Bore housing is rated to 600+ hp, flows 47% more than the factory housing and suits builds over 335 kW (450 hp), but it requires a MAF-specific calibration.

Note: As supplied, the kit suits the factory turbo inlet pipe. The Big Bore option needs a MAF scaling tune before the car is driven. Installation by a professional is recommended.

Features

• 152mm (6") cone filter in a rotomoulded HDPE airbox
• Uses the factory air duct and seal to reduce heat soak
• Two-piece MAF housing with velocity stacks for factory-like fuel trims
• Custom-moulded 4-ply silicone hoses
• Stainless lined clamps, stainless hardware, wire loom and dress-up kit
• Standard Bore option needs no ECU calibration

Pairs Well With

• PRL Motorsports Titanium Turbocharger Inlet Pipe Kit - Honda Civic Type R (FK8)
• PRL Motorsports High Volume Intake MAF Housing Conversion Kit - Honda Civic Type R (FK8)
• PRL Motorsports Intercooler Charge Pipe Upgrade Kit - Honda Civic Type R (FK8)
• PRL Motorsports Intercooler Upgrade Raw - Honda Civic Type R (FK8)
• Radium Engineering Fluid Lock Dual Catch Can Kit - Honda Civic Type R (FK8 / FL5)

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
