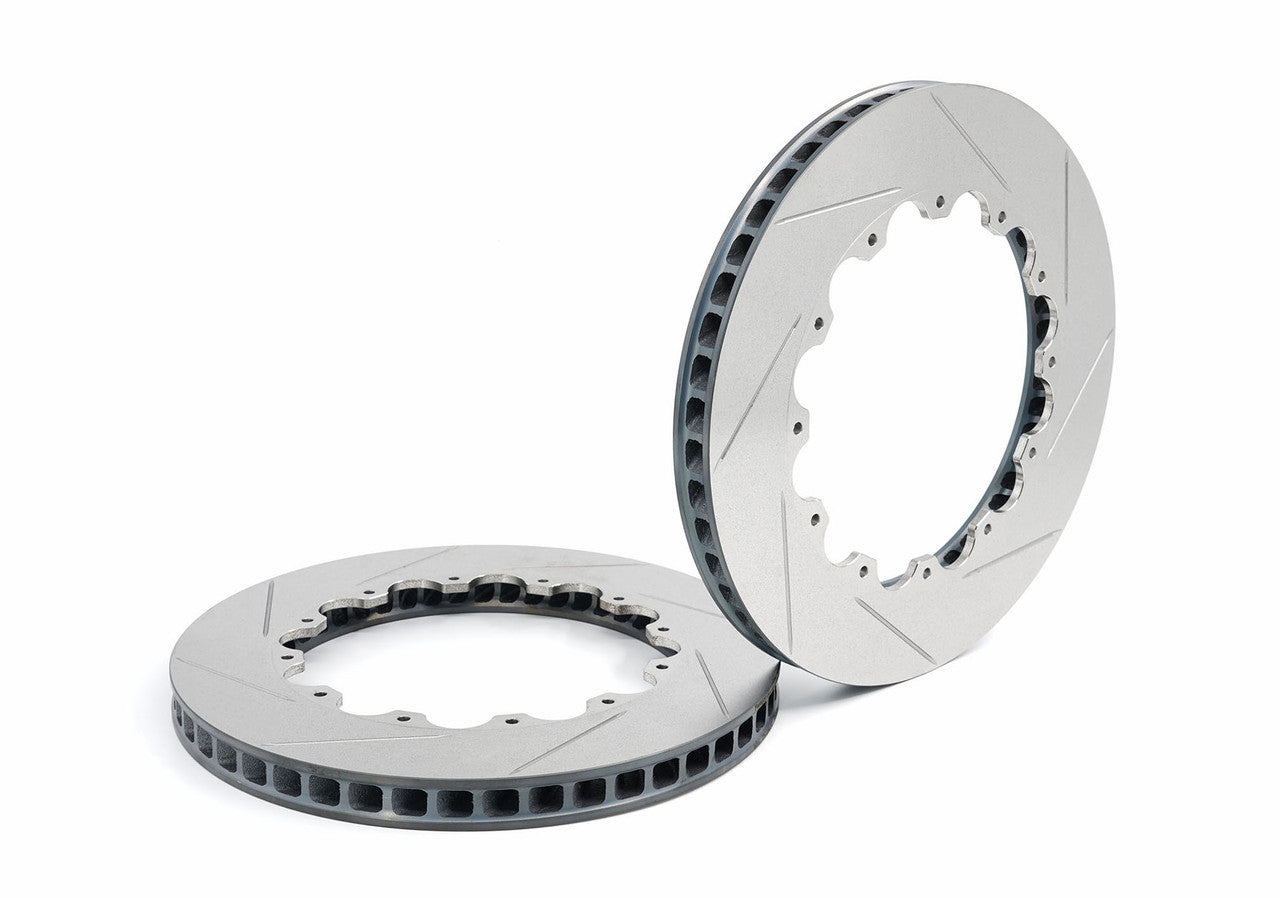

PARAGON Performance Rotor Rings – 343x28mm / PCD 215.9mm – D50

Track-Ready Performance. Direct Replacement.

Upgrade or refresh your braking system with Paragon Performance replacement rotor rings. Designed as a direct replacement for the AP Racing CP6565 series, these rings offer superior braking efficiency specifically optimised for track and race applications.

Manufactured from CM-250 specially formulated High Carbon Alloy cast iron, these rotors provide optimal bite, high-temperature strength, and exceptional durability. The directional ventilation vanes create suction and turbulence to guide cool air through the rotor, increasing cooling efficiency by up to 30% compared to standard designs.

Each rotor ring undergoes a rigorous heat treatment process to release stress, preventing deformation and vibration under harsh track conditions. The surface is then finished with state-of-the-art CBN machining to ensure a perfect break-in with new pads.

Key Features

• High Carbon Alloy: CM-250 iron provides excellent thermal capacity and resistance to cracking.
• Optimised Cooling: 48 directional ventilation vanes increase airflow and cooling efficiency by up to 30%.
• Precision Balanced: Lateral run-out is kept within 0.03mm with weight variations under 2 grams for vibration-free operation.
• Floating Design: Allows for thermal expansion while minimising deformation and ensuring self-centring with the pads.
• Slotted Face: Maintains a clean contact surface, dissipates gas and heat, and prevents water film build-up in wet conditions.
• Weight Saving: Weighing just 6.06kg, these rings reduce unsprung mass for improved handling.

Specifications

• Outer Diameter: 343mm (13.50")
• Thickness: 28mm (1.10")
• Mounting Hole Quantity: 12
• Mounting PCD: 215.9mm
• Mounting Hole Size: 6.4mm
• Inside Flange Diameter: 198mm
• Flange Face: Step Up +0.15mm
• Air Gap: 14mm
• Vane Count: 48 Directional Vanes
• Weight: 6.06kg (13.36lbs) per ring

Cross-Reference Part Numbers

These rotor rings are a direct replacement for the following AP Racing part numbers:

• AP Racing: CP6565-160/1
• AP Racing: CP6565-160
• AP Racing: CP6565-161

What's In The Box?

• 2x Paragon Performance Rotor Rings (LH & RH)
• Installation Manual

Note: This product includes the friction rings only. Mounting hardware (bobbins/bolts) and hats are sold separately or must be reused if in serviceable condition. Professional installation is recommended.
