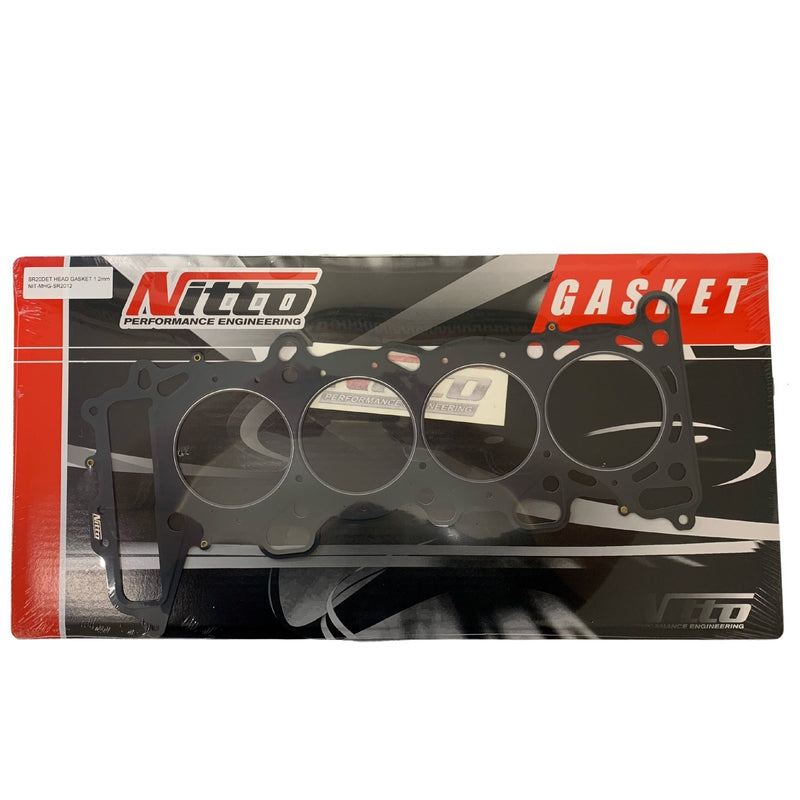

Nitto DBS Metal Head Gasket Nissan SR20DET Silvia / 180SX / 200SX (S13 / S14 / S15)

Nitto DBS Metal Head Gasket - Nissan SR20DET - Silvia / 180SX / 200SX (S13 / S14 / S15)

Nitto's DBS Drag Series head gasket is a multi-layer metal gasket for the SR20DET in the S13 Silvia and 180SX and the S14 and S15 200SX. It suits high-boost street, drift and race engines where head sealing is critical.

Choose the thickness to suit your build: 1.2 mm, 1.5 mm or 1.8 mm. A thicker gasket lowers compression and increases piston-to-head clearance. All three suit 86.0 to 87.0 mm bores.

Nitto DBS Drag Series gaskets are multi-layer steel. Along with a bead seal around each bore, they add a stainless metal "O-ring" that seals the gasket layers from combustion pressure, and Nitto's pressure-film testing showed it gives the highest bore sealing pressure of the gaskets tested. An HR-200 coating seals the water and oil passages between head and block.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Multi-layer steel construction
• Bead seal plus a stainless metal "O-ring" around each bore
• Tested with pressure-indicating film for bore sealing
• Extreme-duty HR-200 coating for water and oil sealing
• Suits 86.0 to 87.0 mm bore

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its discretion, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
