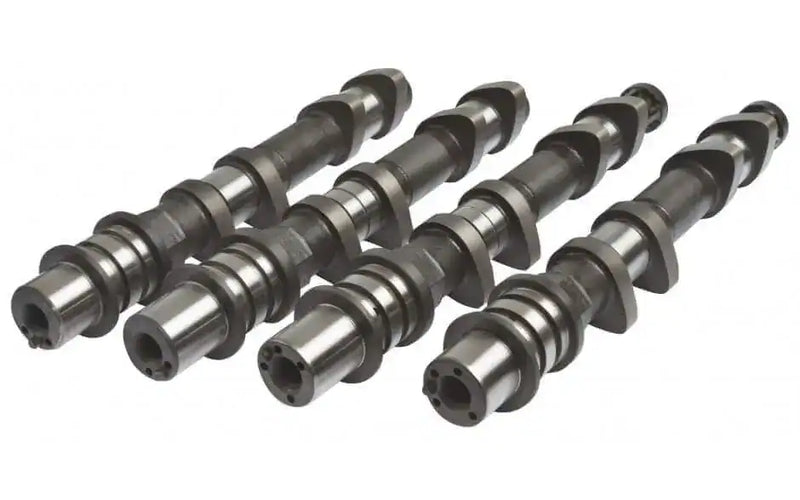

Kelford 264/260 Camshaft Set - Subaru EJ20 AVCS - WRX STI (GD)
The Kelford V2-199-B is a four-cam set for the Subaru EJ20 with intake AVCS, the engine in the WRX STI (GD), which Kelford lists as Version 7 to 10. It is Kelford's high-lift, short-duration race and rally grind: 264° on the intake and 260° on the exhaust, with 10.70mm and 10.20mm of valve lift. That combination gives sharp throttle response and stronger mid-range power, and Kelford matches it to turbos of around 54-60mm.
Video
Kelford Cams: choosing the right camshaft, and how to identify Subaru EJ cams.
The lobes sweep wider across the bucket than the factory cams, so this set must run on shimless buckets (or buckets with the shim underneath). It will not work with the early buckets that carry the shim on top.
Check your intake cams before ordering: this set suits engines with four paddle-style triggers on the back of the intake cams (second photo). Engines with the slot-style trigger (third photo) need Kelford's R-199 range instead.
Note: Needs shimless buckets, and the ECU must be tuned to suit. Kelford recommends upgraded valve springs; its own match for this grind is the KVS1847-BT beehive kit. Installation by a professional is recommended.
Features
- Set of four camshafts: two intake, two exhaust
- 264° intake / 260° exhaust advertised duration
- 10.70mm intake / 10.20mm exhaust valve lift
- Race and rally grind for throttle response and mid-range power
- Suits turbos of around 54-60mm
- Paddle-style AVCS trigger on the intake cams
- Made in New Zealand by Kelford Cams
Prefer billet cams? See the GSC Power-Division Billet S1 Camshafts (268/266) for the EJ20 STI.
Pairs Well With
- Supertech Dual Valve Spring Kit 82 lb - Subaru EJ20 / EJ25 Turbo
- GSC Power-Division Beehive Valve Spring & Titanium Retainer Kit - Subaru EJ20 / EJ257
- Tomei Timing Belt Guide - Subaru EJ20 / EJ25
- ARP 2000 Head Stud Kit - Subaru EJ20 / EJ25 DOHC
Shop more: Kelford Cams
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Kelford Cams
- Duration @ 1.00mm valve lift
- 230° intake / 226° exhaust
- Valve lift
- 10.70mm intake / 10.20mm exhaust
- Timing @ 1.00mm valve lift
- IVO 15° ATDC, IVC 65° ABDC, EVO 46° BBDC, EVC 0° TDC
- Valve lift at TDC
- 0.15mm intake / 0.99mm exhaust
- Valve clearance (cold, at the cam)
- 0.20mm intake / 0.25mm exhaust
- Turbo size
- Around 54-60mm
- Part number(s)
- V2-199-B
Details
- Product
- Camshaft set (2 intake, 2 exhaust)
- Engine
- Subaru EJ20 with intake AVCS (Version 7-10)
- Vehicle
- Subaru WRX STI (GD)
- Grind
- V2-199-B race and rally
- Advertised duration @ 0.10mm
- 264° intake / 260° exhaust
- Cam lift
- 10.90mm intake / 10.45mm exhaust
- Rocker ratio
- 1:1
- Lobe centres
- 130° ATDC intake / 113° BTDC exhaust
- Buckets
- Shimless (or shim-under) required
- AVCS trigger
- Four paddle-style triggers on the intake cams
- Recommended springs
- Kelford KVS1847-BT beehive kit
- Made in
- New Zealand
Contents
- 2 x Kelford V2-199-B intake camshafts
- 2 x Kelford V2-199-B exhaust camshafts
