HKS S-Type Oil Cooler Kit – Subaru BRZ (–2016 FA20)

The HKS Oil Cooler Kit for the Toyota 86 ZN6 and Subaru BRZ ZC6 is designed for vehicles requiring stable oil temperatures under high load. The core mounts inside the fender, allowing installations that would normally conflict with front-mounted intercoolers or GT Supercharger setups. This makes the kit ideal for forced-induction builds, upgraded turbo vehicles, and NA cars used for track driving.

Product Overview

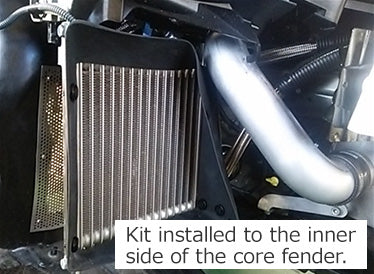

The inner-fender mounting position keeps the front of the car free for intercoolers and improves packaging for high-performance setups. A dedicated air guide directs airflow into the cooler for higher efficiency. A special spacer and centre bolt are included to prevent interference near the oil filter mounting surface, ensuring proper fitment.

Included in the Kit

• Oil cooler core
• S-type oil cooler attachment
• Spacer and centre bolt
• Banjo fittings and banjo bolts
• Mounting bracket
• Air guide
• Oil cooler hoses
• Accessory hardware

Key Features

• Core mounts inside the fender for more installation flexibility
• Compatible with GT Supercharger and front-mount intercooler setups
• Dedicated air guide for improved cooling efficiency
• Ideal for tuned NA and forced-induction 86/BRZ vehicles
• Engineered to maintain safe oil temperatures during sustained circuit use
• Precise fitment with included spacer/centre bolt to avoid contact near oil filter

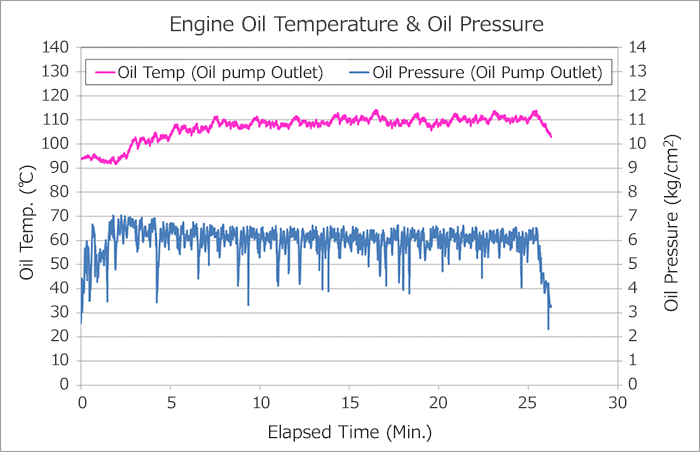

HKS Test Data

Test Vehicle: Toyota 86
Output: 300ps (GT Supercharger Pro Step 2)
Course: Fuji Speedway
Ambient Temp: 12°C

Under conditions where oil temperature is normally difficult to control, this kit maintained oil temperature at approximately 110°C during a full 25-minute track session, without any performance drop or safety issues.

Installation Manual

Download HKS Install Manual (15004-AT111)
