GFB WGA Internal Wastegate Actuator Mitsubishi Evo 9 (CT9A)

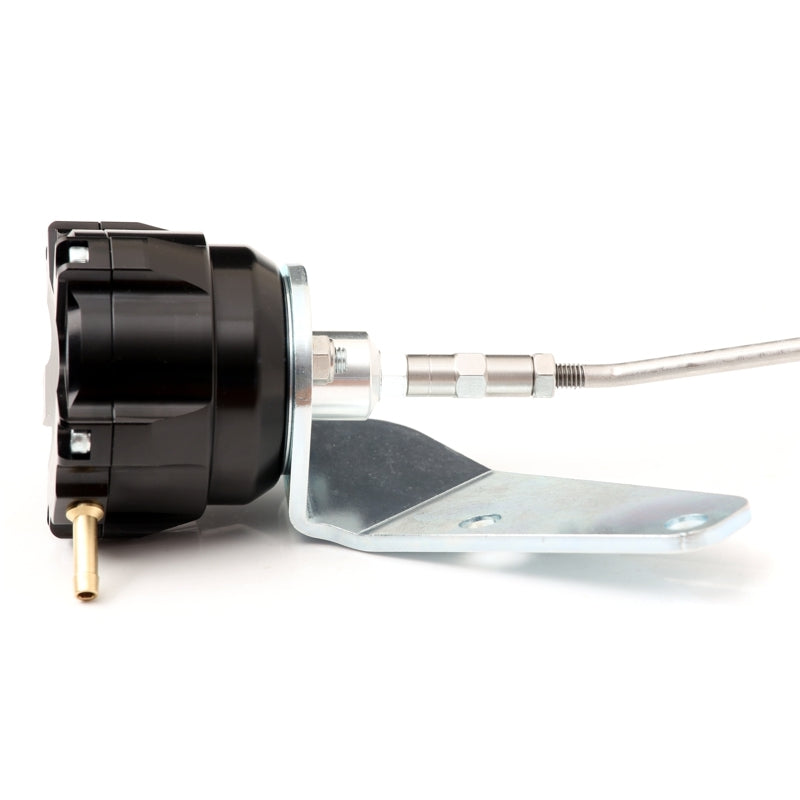

GFB WGA Internal Wastegate Actuator - Mitsubishi Evo 9 (CT9A)

GFB built the WGA to solve the boost control problems that plague turbo systems still running an internal wastegate. Featuring an industry first Nomex reinforced diaphragm and a PEEK pivoting rod guide, it delivers more control authority in a shorter, more compact housing. For the Mitsubishi Evo 9 (CT9A) running the factory turbo, this actuator sharpens spool up, reduces boost taper at high RPM, and gives a far more stable boost curve than the factory unit.

This listing covers SKU 7302, a direct bolt on unit specifically designed for the Mitsubishi Evo 9 with the OEM turbo. It comes fitted with the 69 kPa (10psi) and 48 kPa (7psi) springs installed for a base pressure of around 117 kPa (17psi), with a 34 kPa (5psi) spring included for further tuning.

Important: this is a tuning tool, not a plug and play part. It will increase boost pressure beyond factory settings, so a professional retune is required after installation.

Key Features

• Nomex reinforced silicone diaphragm for maximum control authority in a compact housing
• PEEK pivoting rod guide for low friction and long term durability
• 18mm rod travel — longest stroke in its class
• Turnbuckle adjustment for fine tuning base boost without swapping springs
• Three stainless steel springs supplied, adjustable from roughly 34 kPa to 152 kPa (5-22psi)
• Direct bolt on fitment for Evo 9 with factory turbo

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your Evo 9's turbo configuration matches before ordering.

Not sure if this actuator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
