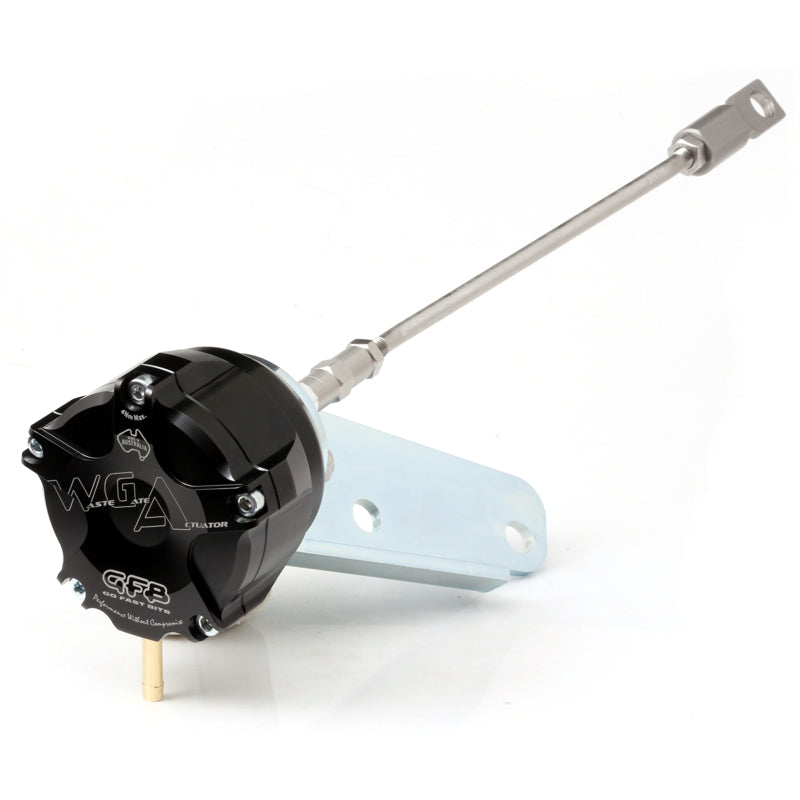

GFB WGA Internal Wastegate Actuator Mitsubishi Evo 4-8 (CN9A/CP9A/CT9A)

GFB WGA Internal Wastegate Actuator - Mitsubishi Evo 4-8 (CN9A/CP9A/CT9A)

GFB built the WGA to solve the classic problem faced by anyone pushing more boost through a factory internal wastegate: boost taper, unstable curves, and a wastegate that simply can't keep up. Designed for the Mitsubishi Evo 4-8 running its factory turbo, the WGA replaces the OEM actuator with a compact, highly adjustable unit that gives you real control authority over the wastegate flap.

This listing covers the Mitsubishi Evo 4, Evo 5, Evo 6, Evo 7 and Evo 8, spanning the CN9A, CP9A and CT9A chassis codes, all fitted with the factory turbocharger.

Important: the WGA is a tuning tool, not just a bolt-on replacement. It will increase boost pressure over stock and tuning is required to run it safely.

Key Features

• Nomex-reinforced silicone diaphragm for maximum control authority in the smallest possible housing
• 18mm of rod travel — the longest stroke in its class for larger internal wastegates or extra boost range
• PEEK machined pivoting rod guide for low friction and long term wear resistance
• Turnbuckle adjustment allows fine tuning of base boost pressure in minutes, without swapping springs
• Three stainless steel springs supplied, adjustable from 5 psi to 22 psi in combination
• Part #7301 ships with 10 psi and 7 psi springs fitted for a 17 psi base pressure, plus a 5 psi spring included for further tuning

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your Evo's chassis code and turbo configuration before ordering.

Not sure if this actuator suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
